Features:

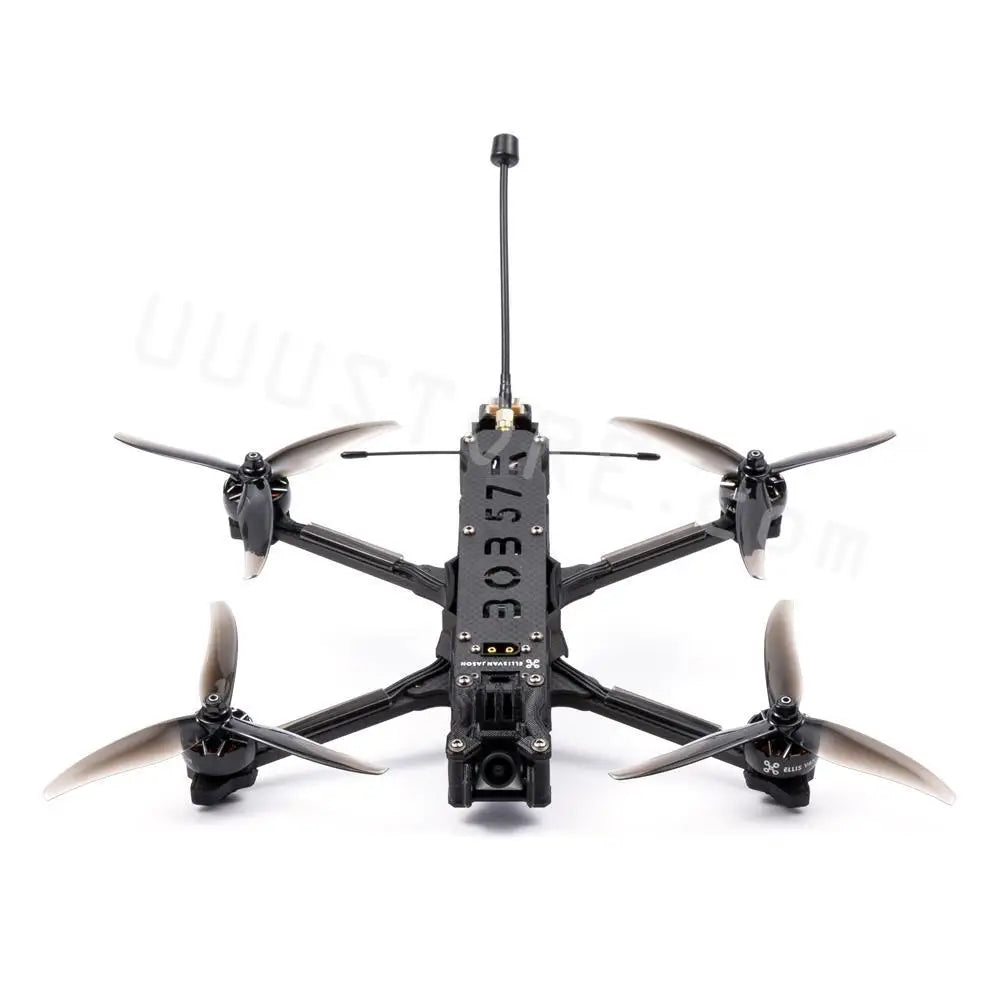

- 6 inch drone re-engineered: This drone was specifically designed for 6 inch

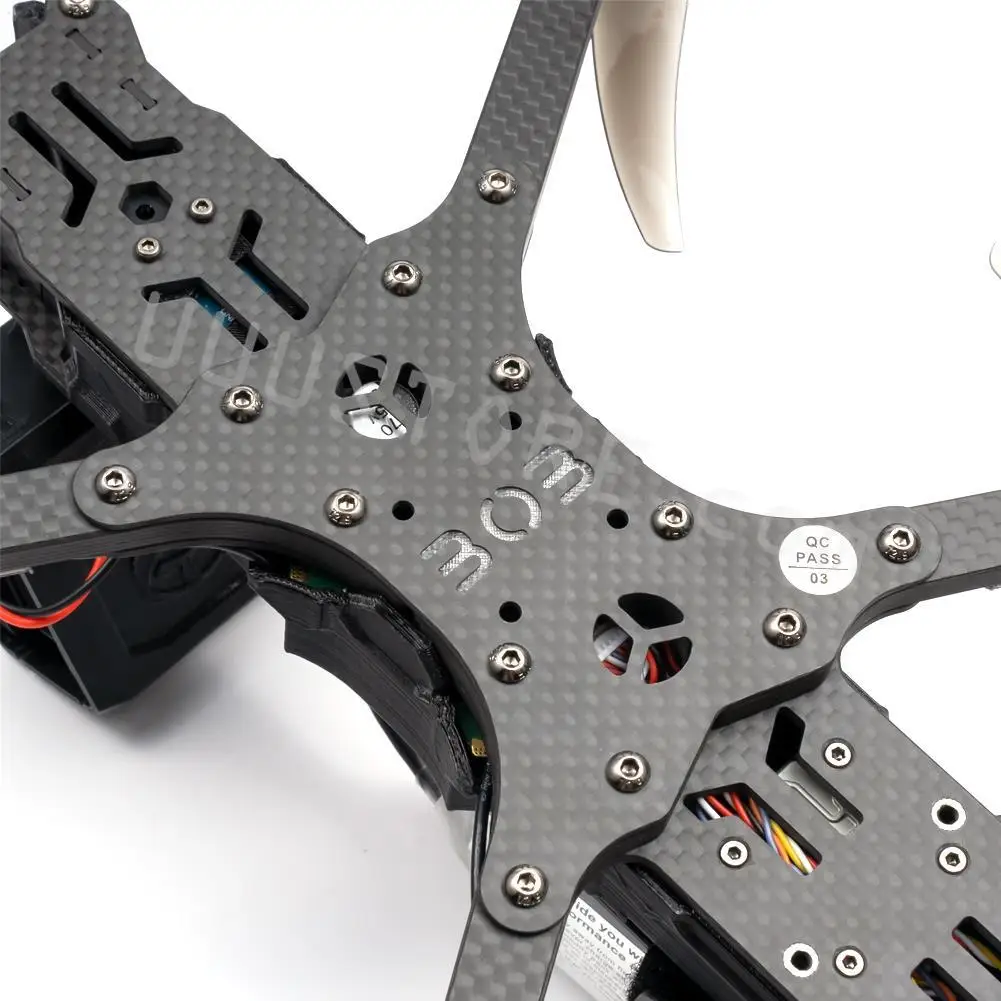

- H-shaped frame with robust middle section for less props in view while remaining stiffness

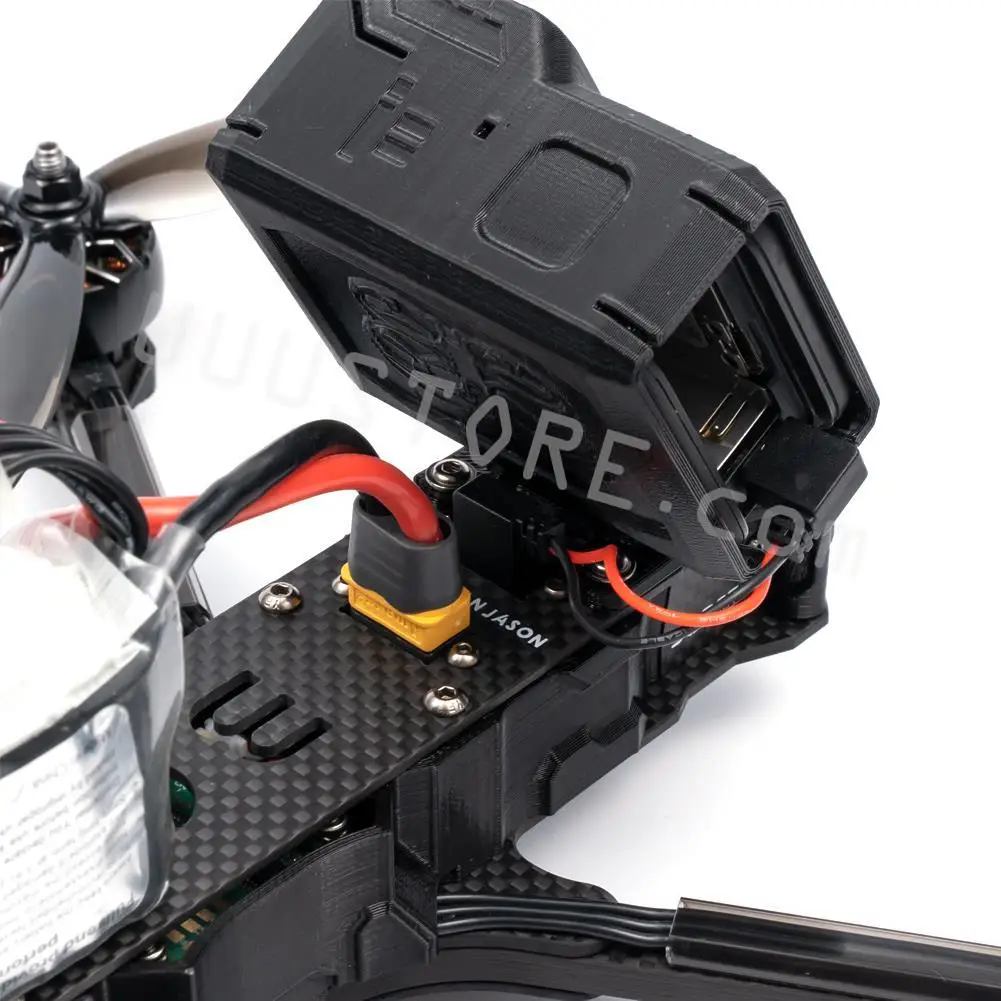

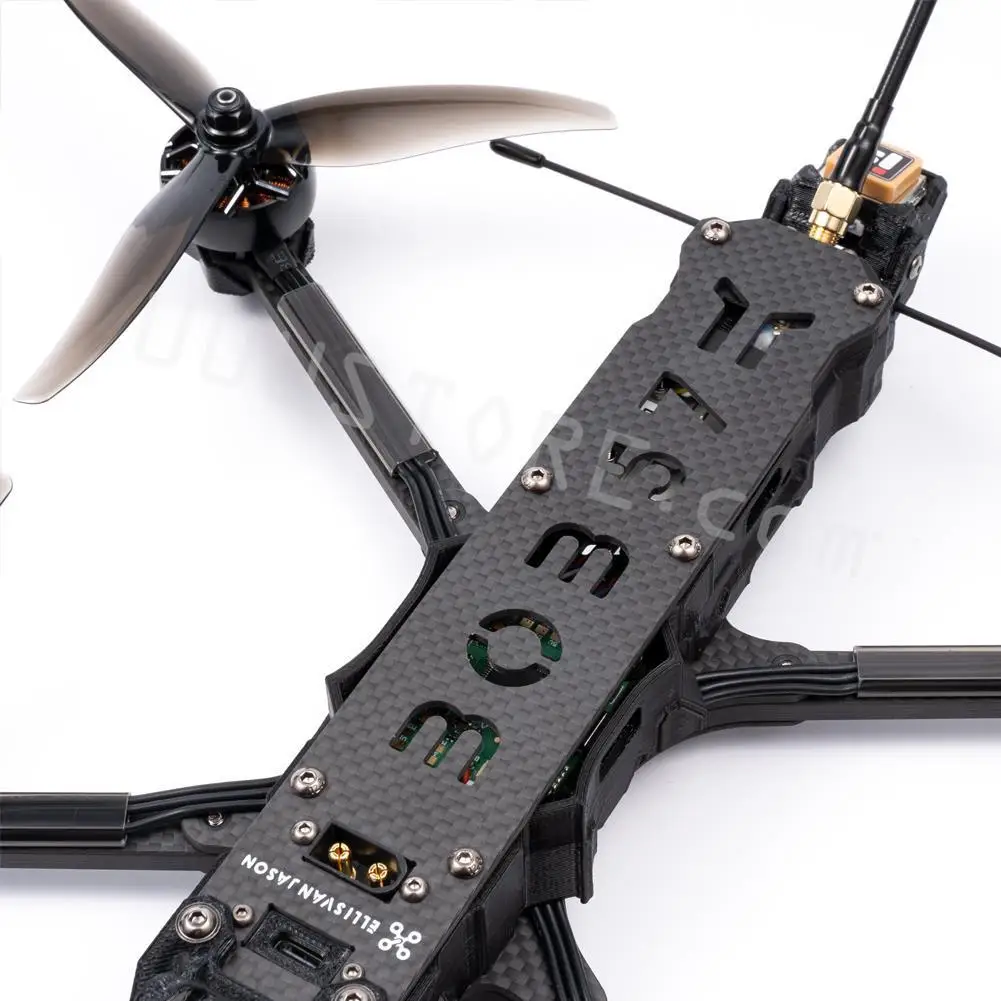

- XT60 front-mount: Compare to other drones the mount sits in the front and gives more space on the back.

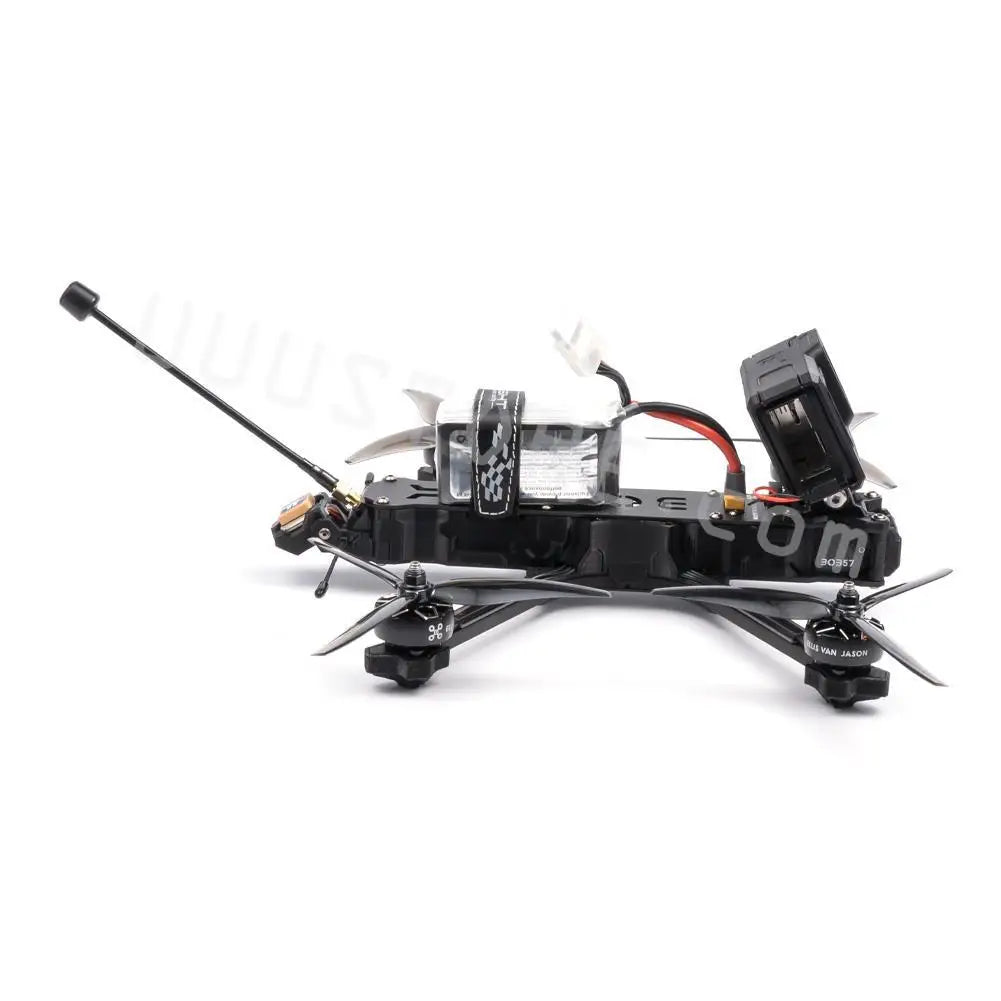

- Built in BEC to directly power a gopro (no battery needed)

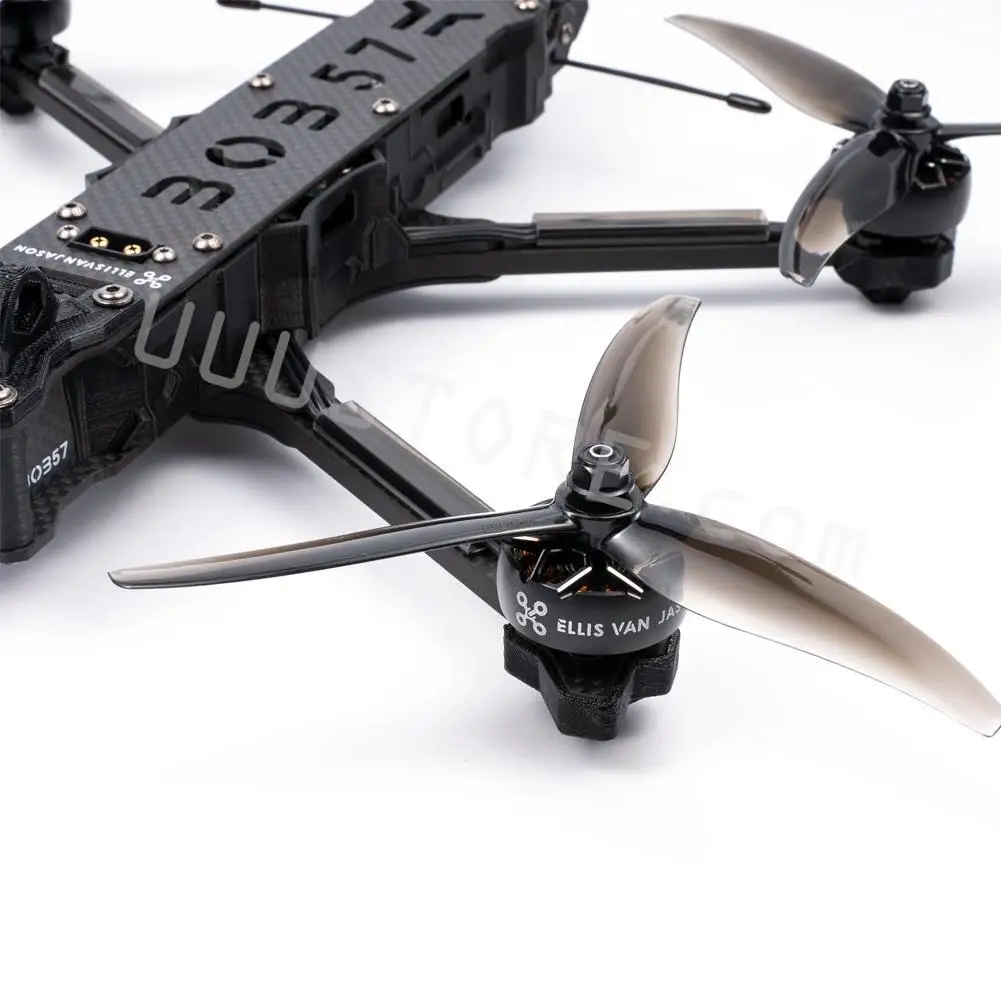

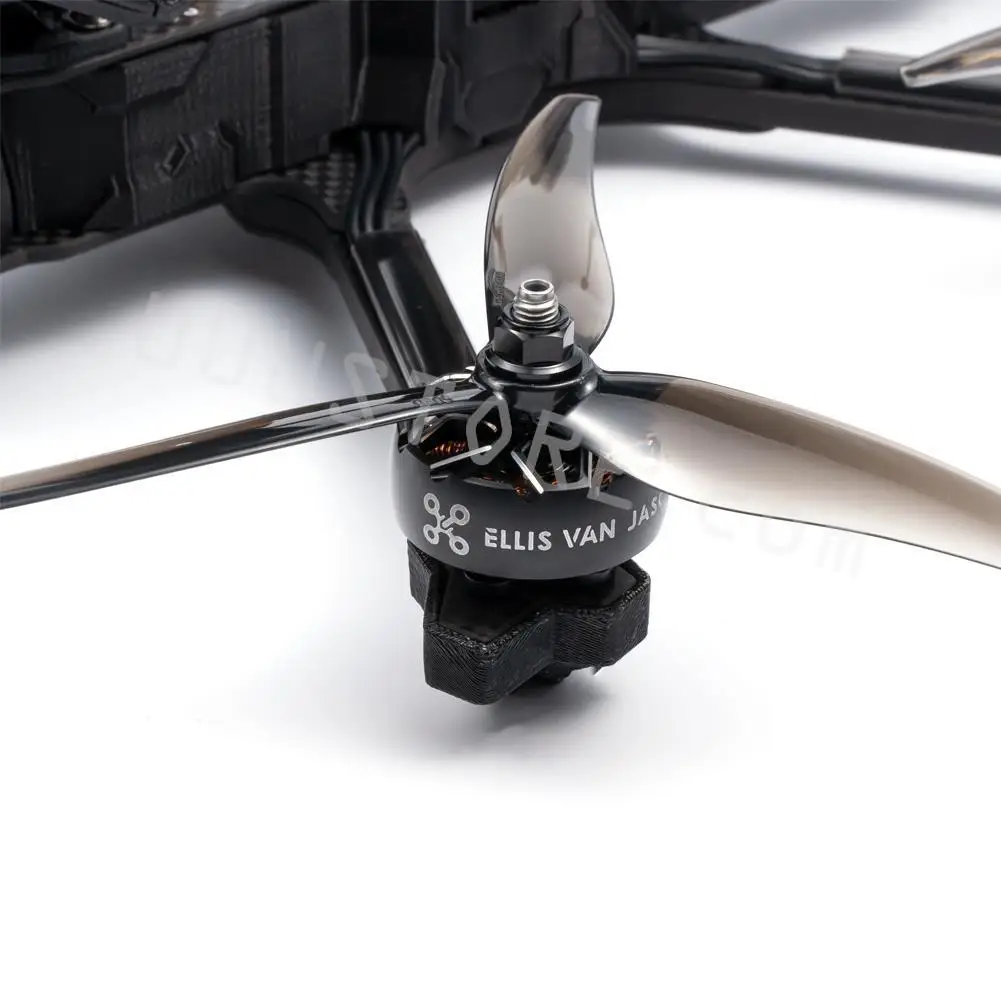

- Hybrid motor design: This motor is optimized for 6 inch.  Can be used with bi- blades (efficiency) and tri-blades (agility & trust).

- Antenna mount: Solid antenna mount for less ocillations when using long antennas

- Long back bone: Enough space up to 3000mAh 6S batteries

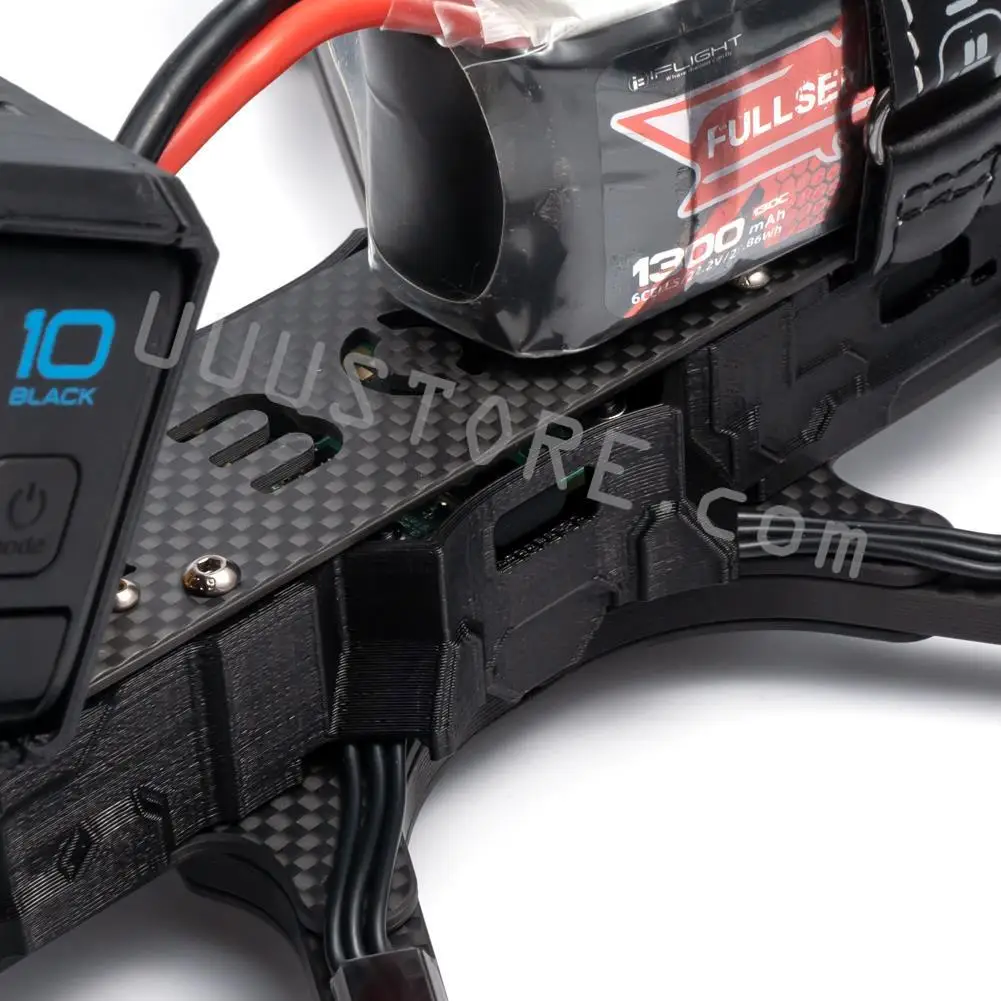

- Gladiator shell: Protection shell from dust and water droplets (shall be removed for max. flight time)

- GPS: A high-end GPS is used to minimize the risk of failure during proximity flights

- ESC: The drone consists iFlight's new ESCs with built-in spike absober for more reliability

- Pre-Tune by Ellisvanjason

- 9min flight time with 1800mAh 6S

- 9+ with 3000mAh 6S Lipo or 4000mAh 6S Li-Ion

Specifications:

- Upper(middle) plate thickness: 2.5mm

- Bottom plate thickness: 1.5mm

- Total Dimensions: 254*254mm

- Bottom to top distance: 22mm

- Geometry: H-shaped frame

- Top plate thickness: 2mm

- Ellisvanjason 2506 motors

- Gemfan 6032 propellers

- Arm Thickness: 6mm

ELECTRONICS // BLITZ F7 Stack (F7 V1.1 + 55A 4in1 ESC):

FC //BLITZ F722 Flight Controller

• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
• Smartaudio / IRC Tramp VTX protocol supported
• Firmware target: IFLIGHT_BLITZ_F722
• Motor outputs: 4x (SH1.0 connector)
• Flash: 32MB (Blackbox flash)
• I2C serial: SDA / SLA pads
• Dimensions: 36.5*35 mm
• Barometer: DPS310
• OSD Chip: AT7456E
• LED controller: Yes
• MCU: STM32 F722
• Beeper pad: Yes
• Gyro: BMI270
• Weight: 7.8g
• UARTS: 6

ESC // BLITZ E55 4-IN-1 2-6S 55A ESC

• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• Mounting Holes: 30.5*30.5mm/Φ4mm
• Target:   IFLIGHT_BLITZ_G2
• Supports 2-6S Lipo input
• Current sensor: Yes
• Constant: 55 Amps
• Current rate: 200
• Burst: 65 Amps
• Weight: 15.3g
• MCU: G071
• BEC: No
