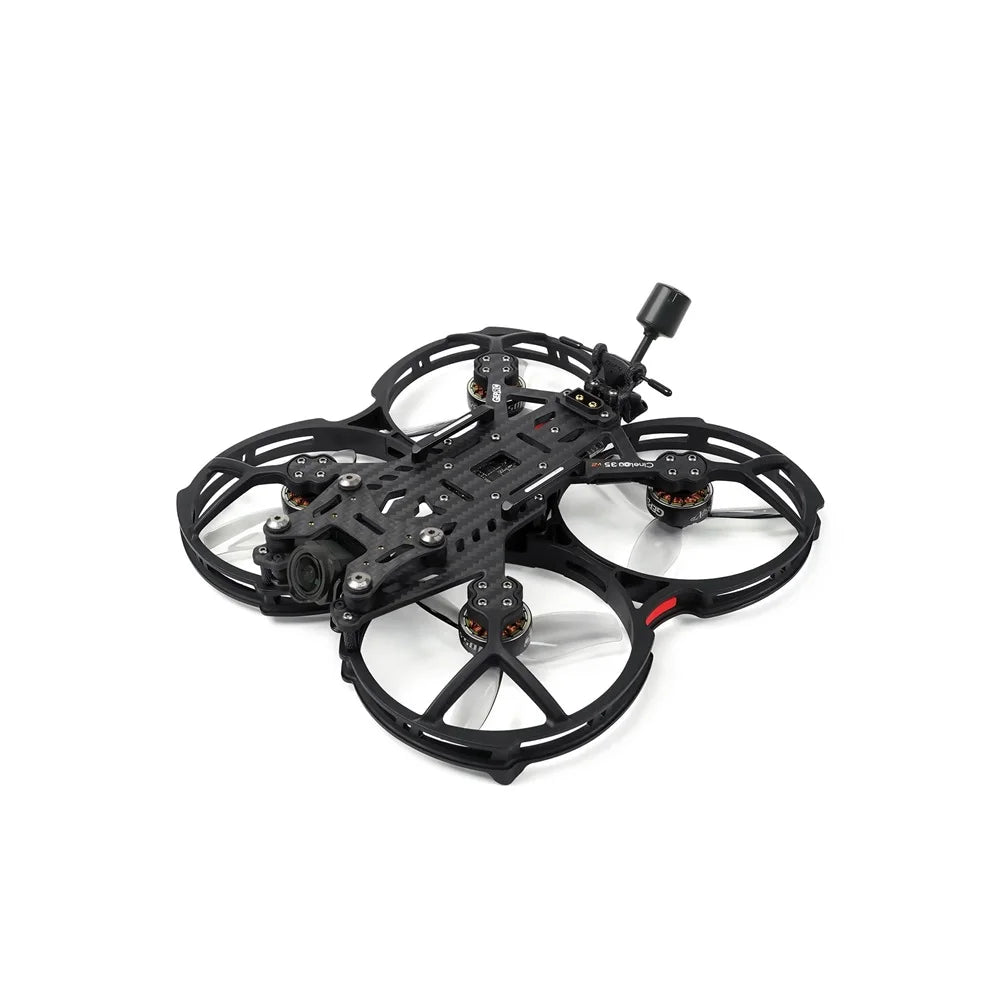

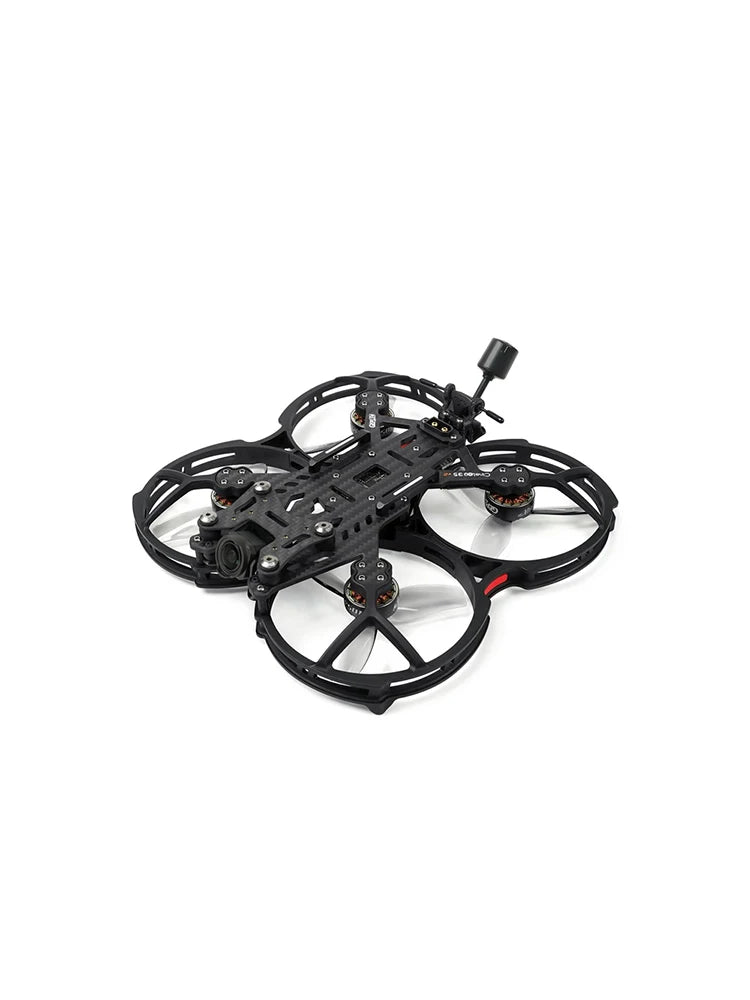

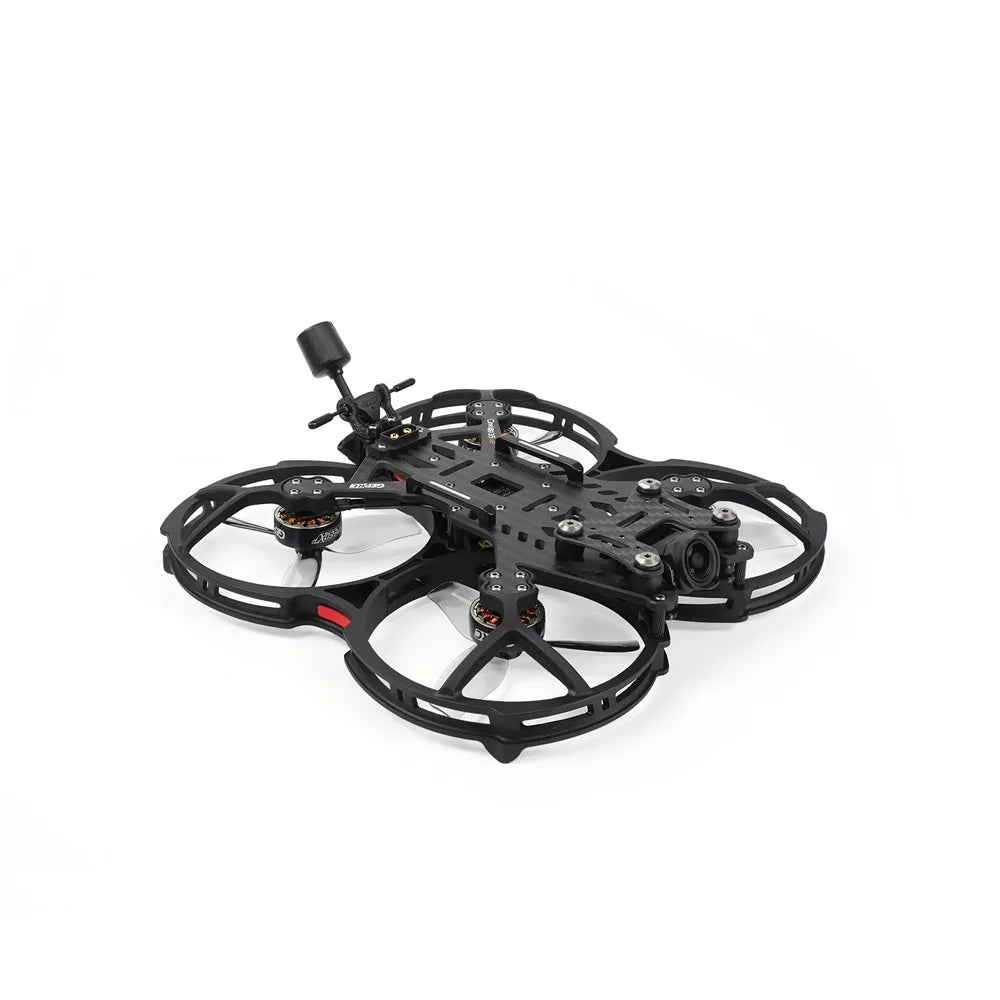

CineLog35 V2 HD Wasp FPV Drone GPS Runcam Wasp Camera SPEEDX2 2105.5 Motor RC FPV Quadcopter Freestyle Drone 7075 Aluminum
CineLog35 V2 HD Wasp FPV Drone GPS Runcam Wasp Camera SPEEDX2 2105.5 Motor RC FPV Quadcopter Freestyle Drone 7075 Aluminum
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Aoft Technology
Transit Time (Days): 1
Features: other
Features: App-Controlled
Features: FPV Capable
Indoor/Outdoor Use: OUTDOOR
Video Capture Resolution: other
Camera Mount Type: other
Controller Battery: NO
Anti-wind Ability: 1
Takeoff Weight: 1
Control Channels: 8 CHANNELS
Material: Metal
Flight Time: >30
Controller Mode: MODE1
Controller Mode: MODE2
Recommend Age: 14+y
Operator Skill Level: expert
Drone Weight: 1
Remote Distance: 2000
Origin: Mainland China
Remote Control: Yes
Package Includes: Original Box
Package Includes: Operating Instructions
Package Includes: Camera
Aerial Photography: No
Type: Airplane
Model: Cinelog35 V2 HD Wasp
Frame: GEP-CL35 V2

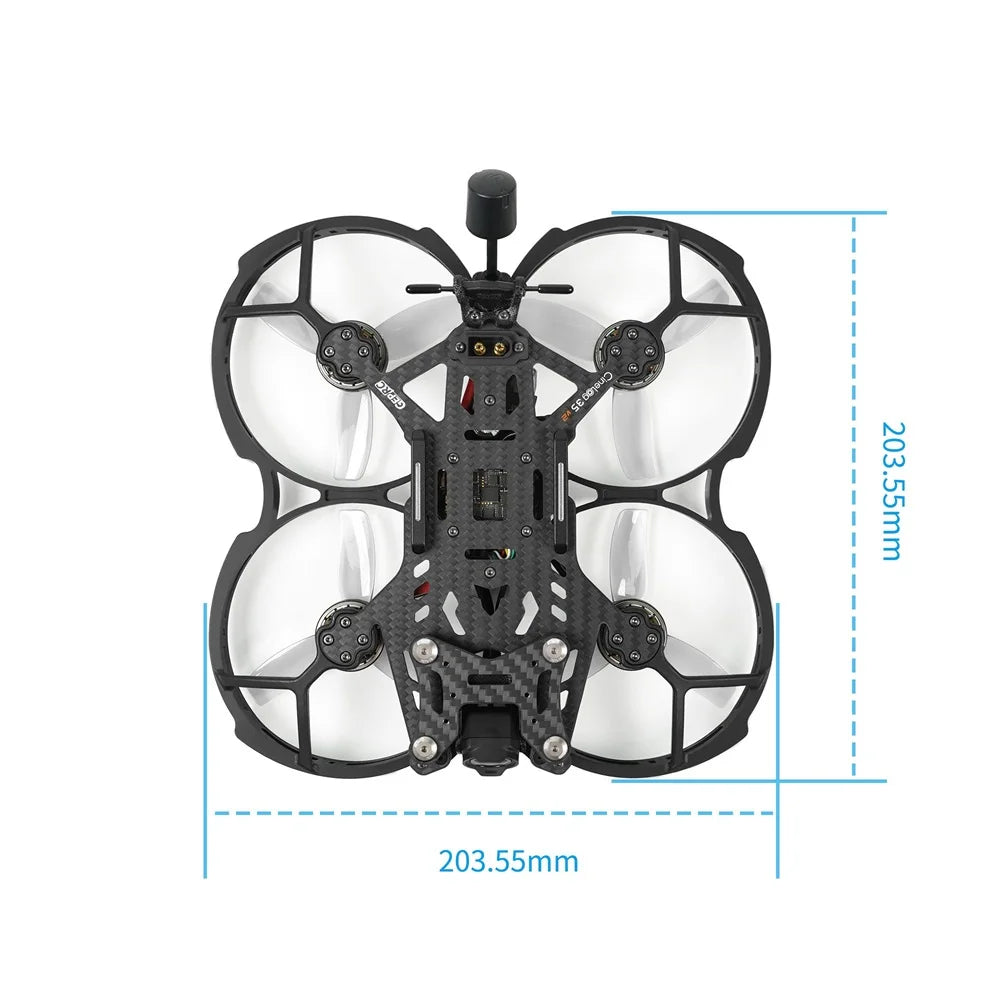

Wheelbase: 142mm
Gimbal plate: 2.0mm
Top plate: 3.5mm
Bottom plate: 1.5mm
FC system: GEP-F722-45A AIO V2
MCU: STM32F722RET6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 45A
VTX: Link
Camera: Runcam Wasp
Antenna: GEPRC Peano 5.8G LHCP UFL
Motor: SPEEDX2 2105.5-2650KV (6S)
Propeller: HQProp D-T90MM

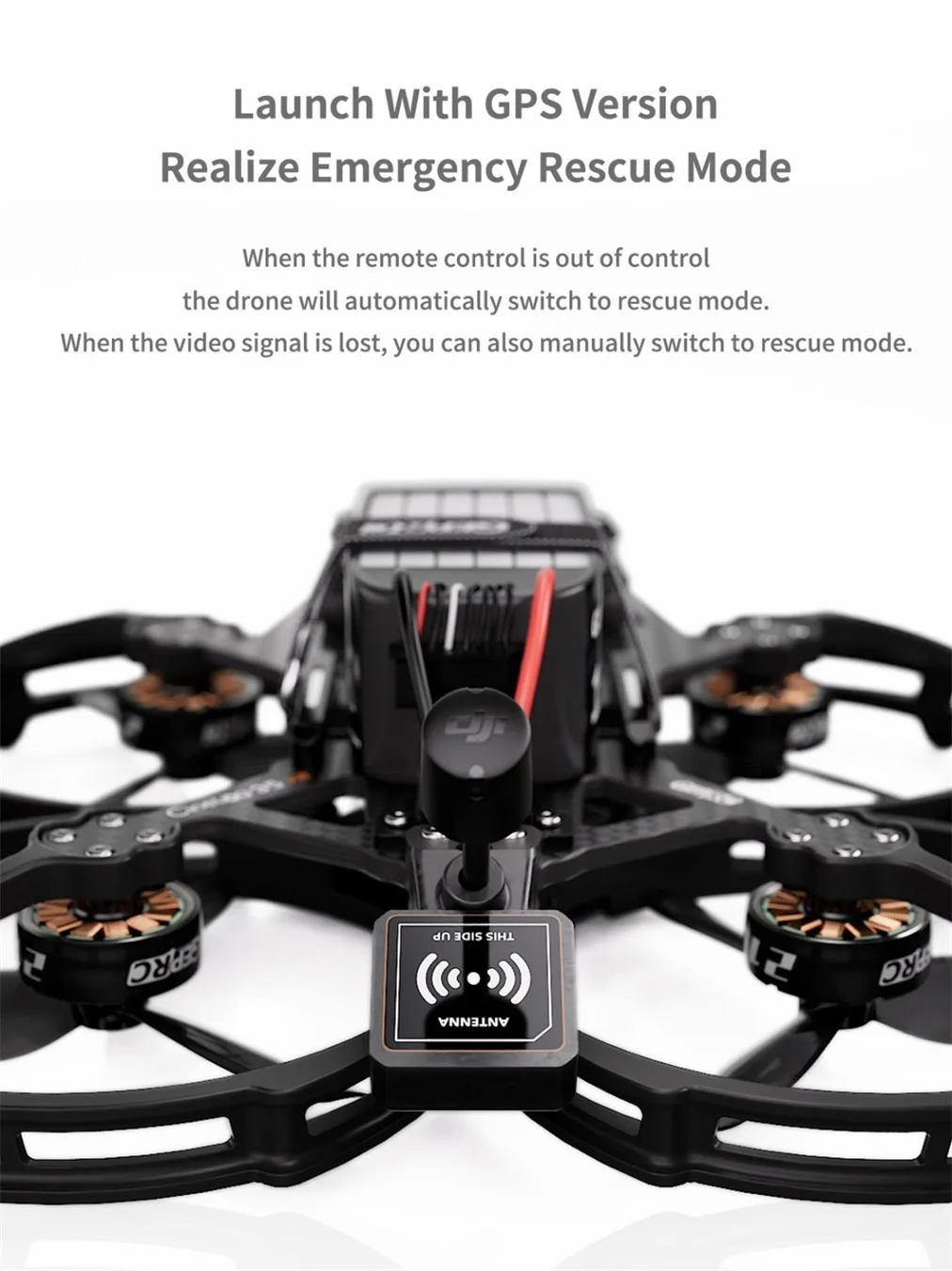

GPS: GEP-M10

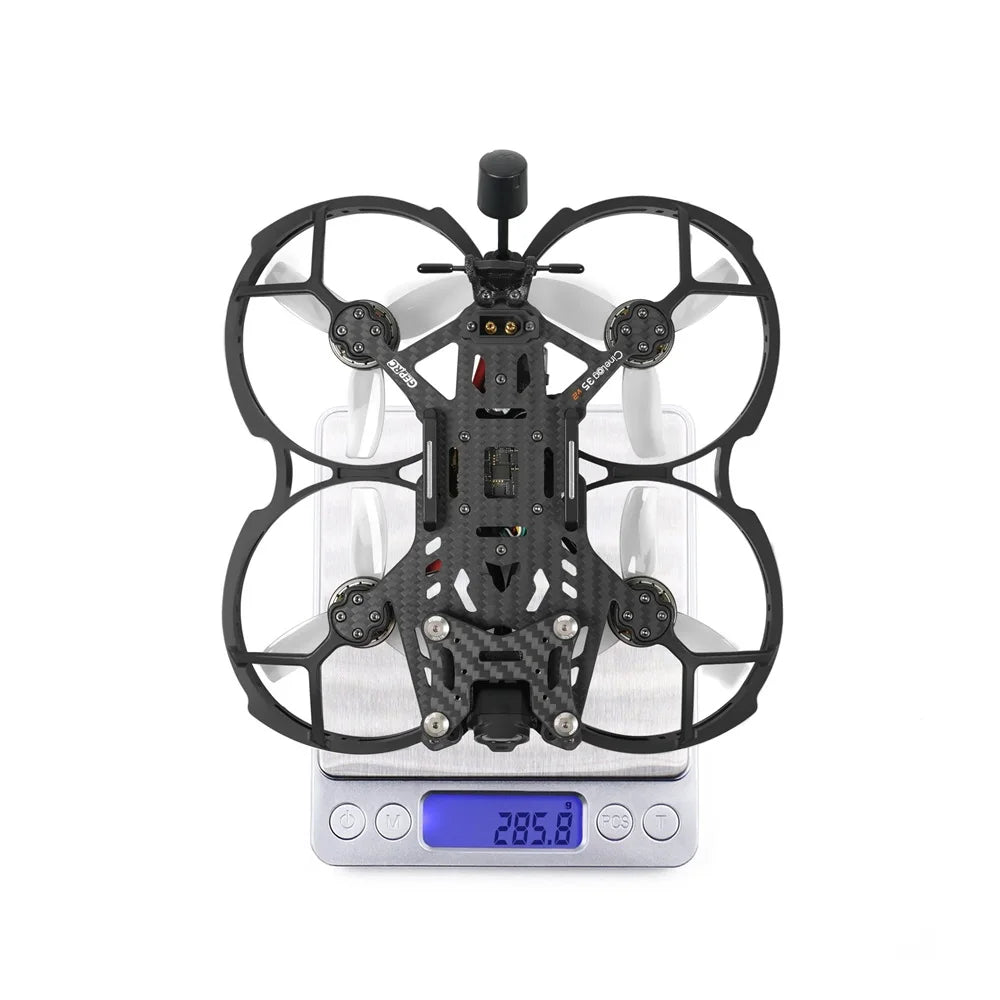

Cinelog35 V2 HD Wasp TBSNanoRX weight: 277.2g
Receiver: PNP, GEPRC ELRS 2.4 G, TBS Nano RX
Recommended battery:LiPo 1050mah-1300mah
Flight time:5′00″ -8′ 30″
Feature

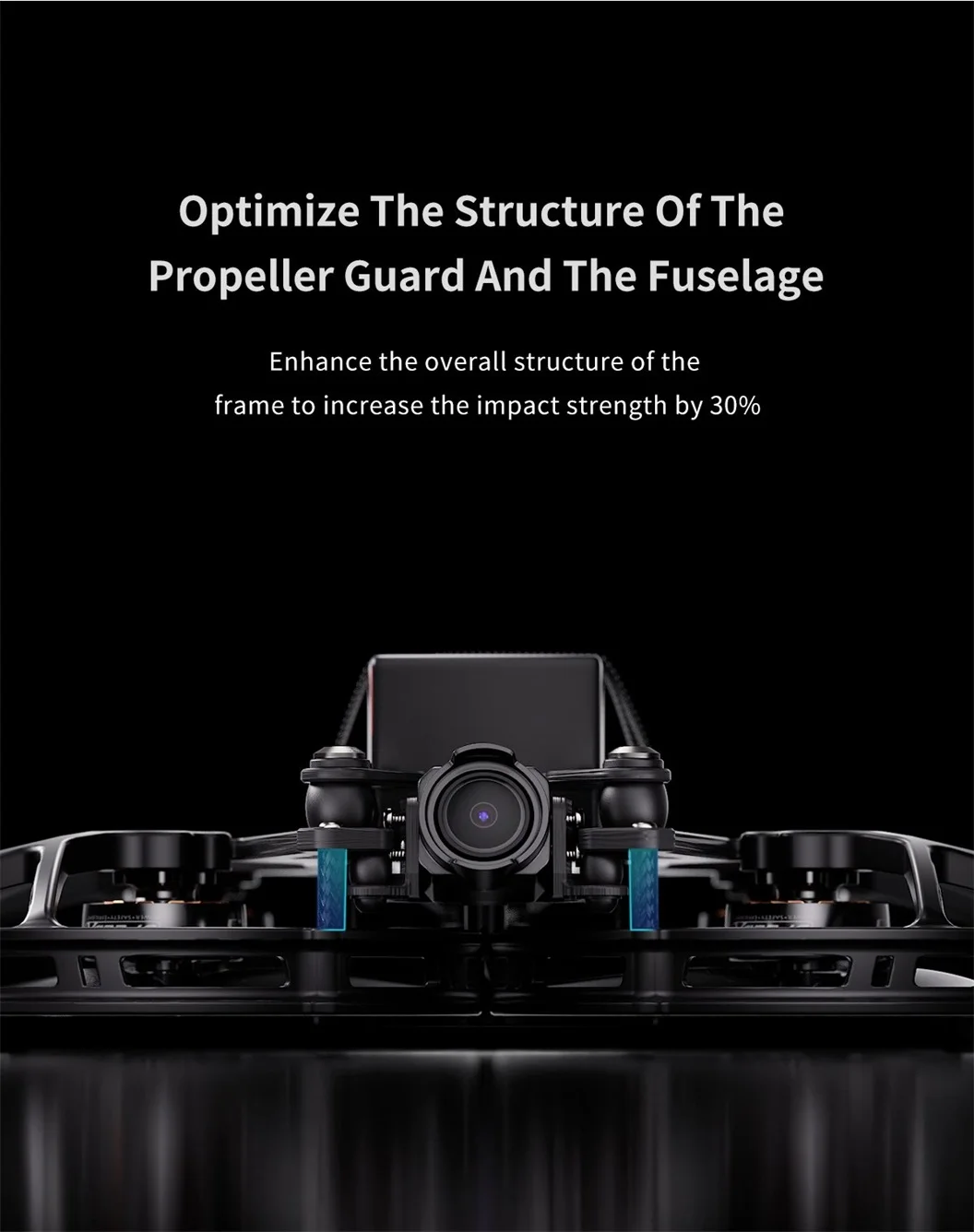

New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
Adopts the GEP F722-45A AIO V2 high performance flight controller.

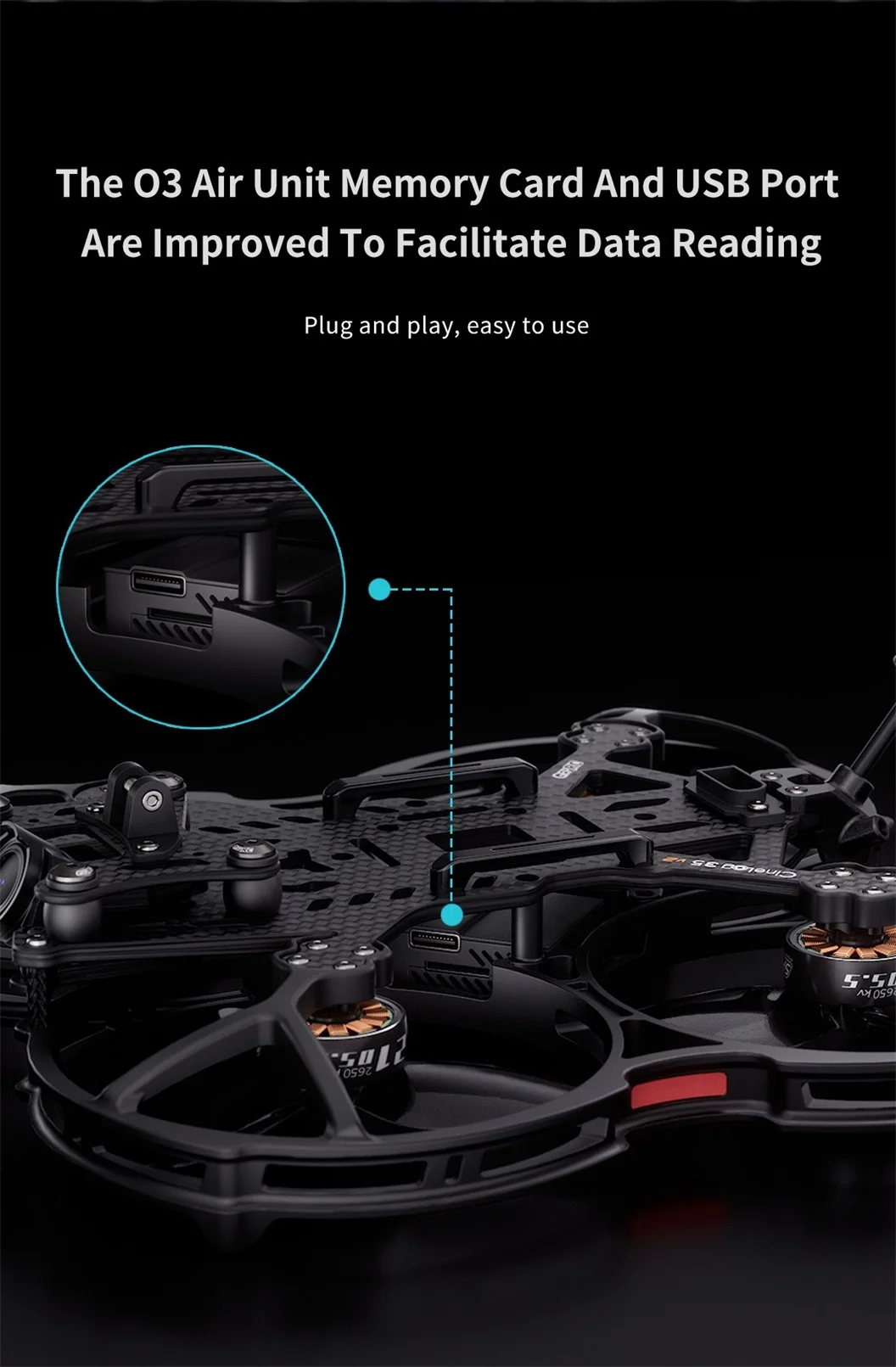

Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading

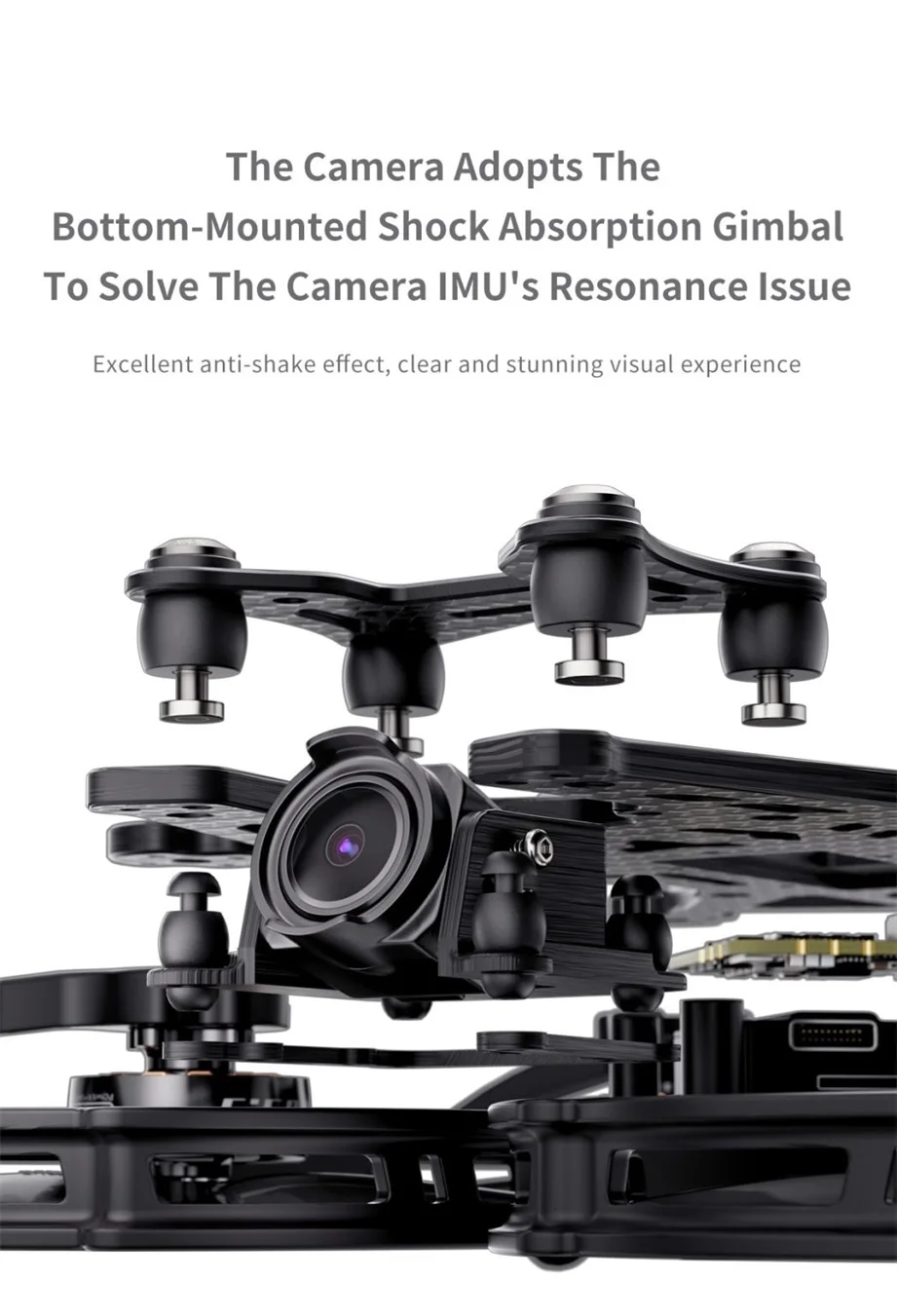

For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.

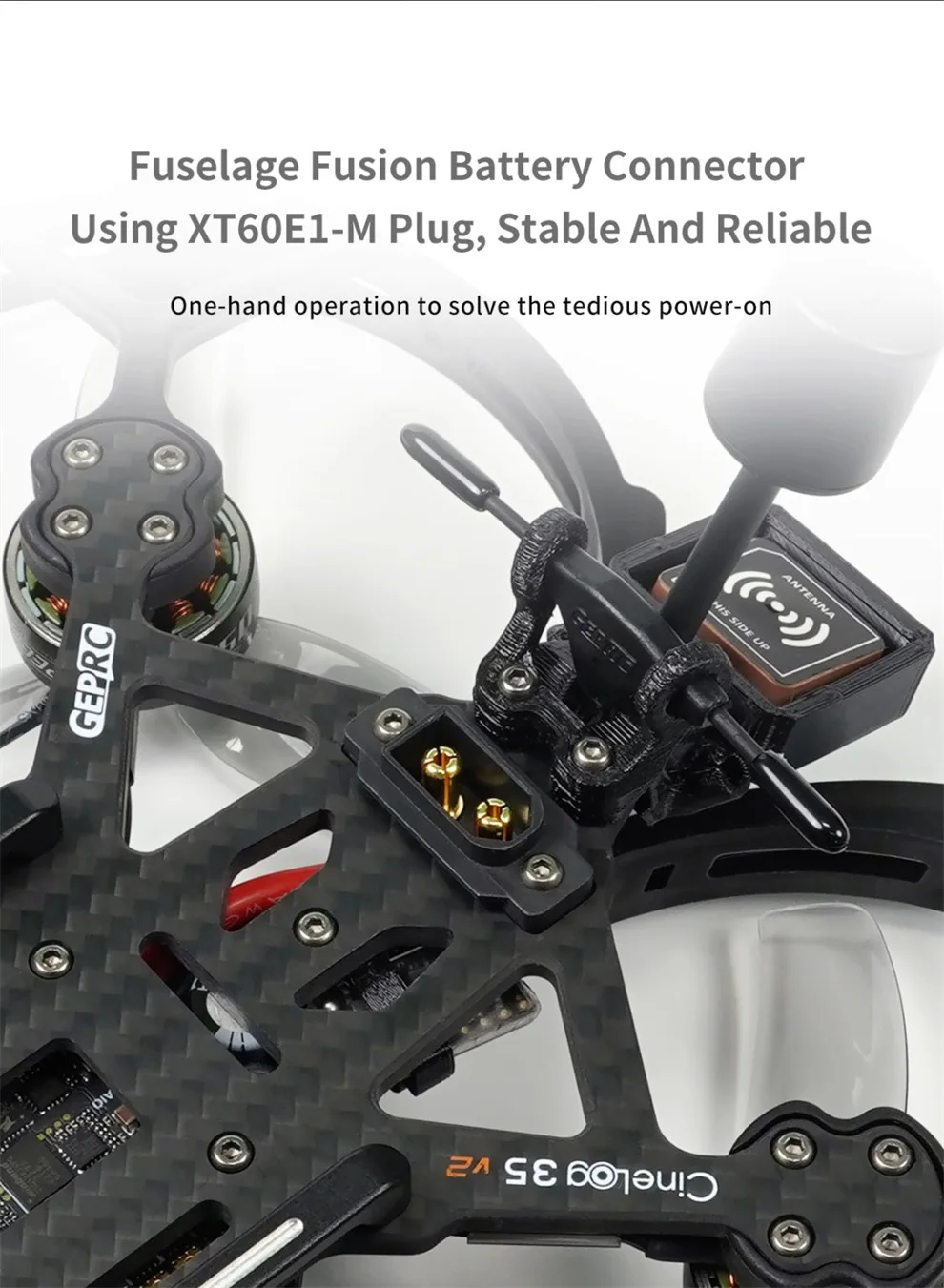

Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.

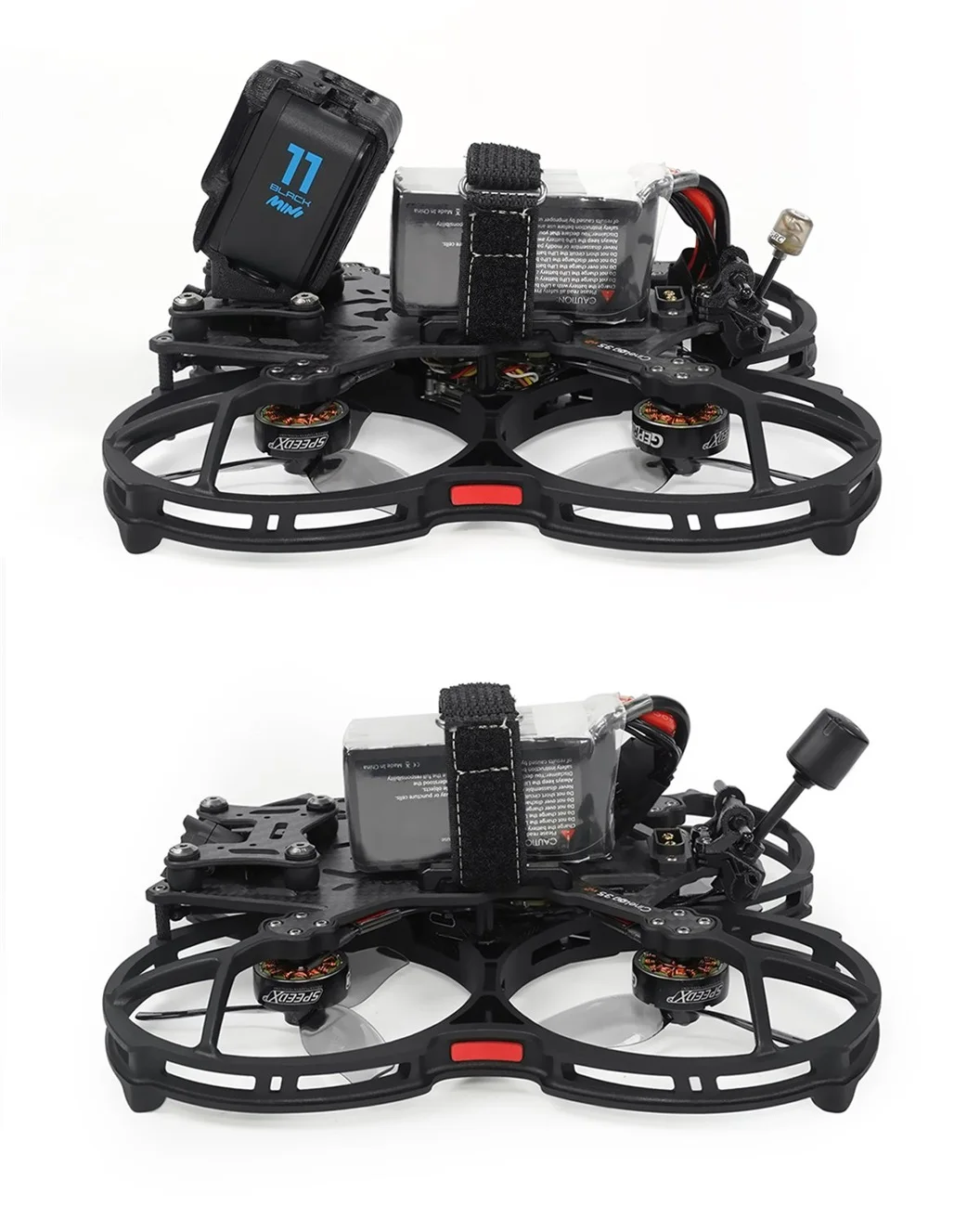

Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.
Includes
1 x CineLog35 V2 HD Wasp
2 x HQProp D-T90MM（2 pairs）
2x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
