Summary:
When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing FPV specially designed for the competition. The GEPRC Racer was thus born.

The main structure of Racer is constructed with 7075T6 aviation aluminum alloy splint combined with high-grade T700 carbon plate, the overall structure is light and stable. The flight system uses GEPRC’s new TAKER F722 E55A stack with two motor versions: GEPRC SPEEDX2 2207 2050KV and TMOTOR F60PROV 2020KV professional racing motor. The overall performance has strong explosive power.

The Racer has been carefully designed by the GEPRC team, and the flying feel and response speed have reached the best state.

Feature:
1. GEPRC SPEEDX2 2207 2050KV / TMOTOR F60PROV 2020KV two professional racing motor versions are optional.
2. The flight performance responds quickly, and the hand feels light and fast.
3. Made of high hardness T700 carbon fiber board material.
4. Design the anti-turtle shark fin support.
5. The quick-release design of the machine arm is convenient for the maintenance of the fryer.
6. Use GEPRC’s new TAKER F722 E55A high-performance stack.
7. Choose MPU6000 gyro.

Specifications:
GEPRC SPEEDX2 2207 motor version
Model: Racer FPV
Frame: GEP-Racer Frame
Wheelbase: 435mm
Top plate: 2mm
Bottom plate: 2mm
Arm plate: 5mm
Aluminum splint plate color: black with red
FC: TAKER F722 SE
ESC: TAKER E55A 32Bit 4IN1
MCU: STM32F722RET6
Gyro: MPU6000
OSD: AT7456E
VTX: GEPRC RADTiny 5.8G 400mW
Camera: Runcam Nano4
Antenna: Peano 5.8G RHCP UFL
Motor: SPEEDX2 2207 2050KV
Propeller: Gemfan 51466 x3
Weight: 279g ± 5g
Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
TMOTOR F60PROV motor version
Model: Racer FPV
Frame: GEP-Racer Frame
Wheelbase: 435mm
Top plate: 2mm
Bottom plate: 2mm
Arm plate: 5mm
Aluminum splint plate color: Black with Titanium
FC: TAKER F722 SE
ESC: TAKER E55A 32Bit 4IN1
MCU: STM32F722RET6
Gyro: MPU6000
OSD: AT7456E
VTX: GEPRC RADTiny 5.8G 400mW
Camera: Runcam Nano4
Antenna: Peano 5.8G RHCP UFL
Motor: F60PROV 2020KV
Propeller: Gemfan 51466 x3
Weight: 281g ± 5g
Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G

Recommend Lipo Battery: ( NOT Included)

6S 1300-1500mah XT60

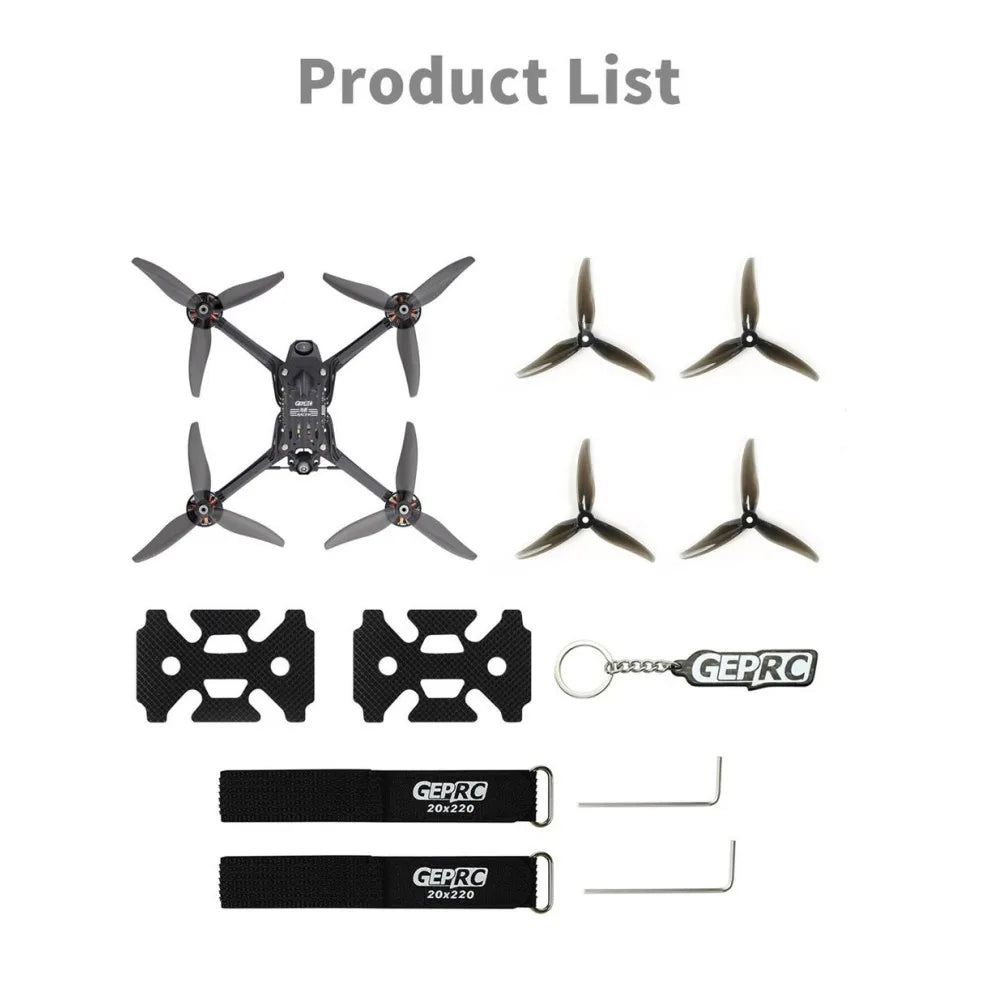

Package Included:
1 x RACER Drone
2 x Gemfan 51466 propellers（pair）
2 x M20*250mm battery tie
2 x Battery anti-skid pads
1 x Spare screw bag
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x M8 wrench
