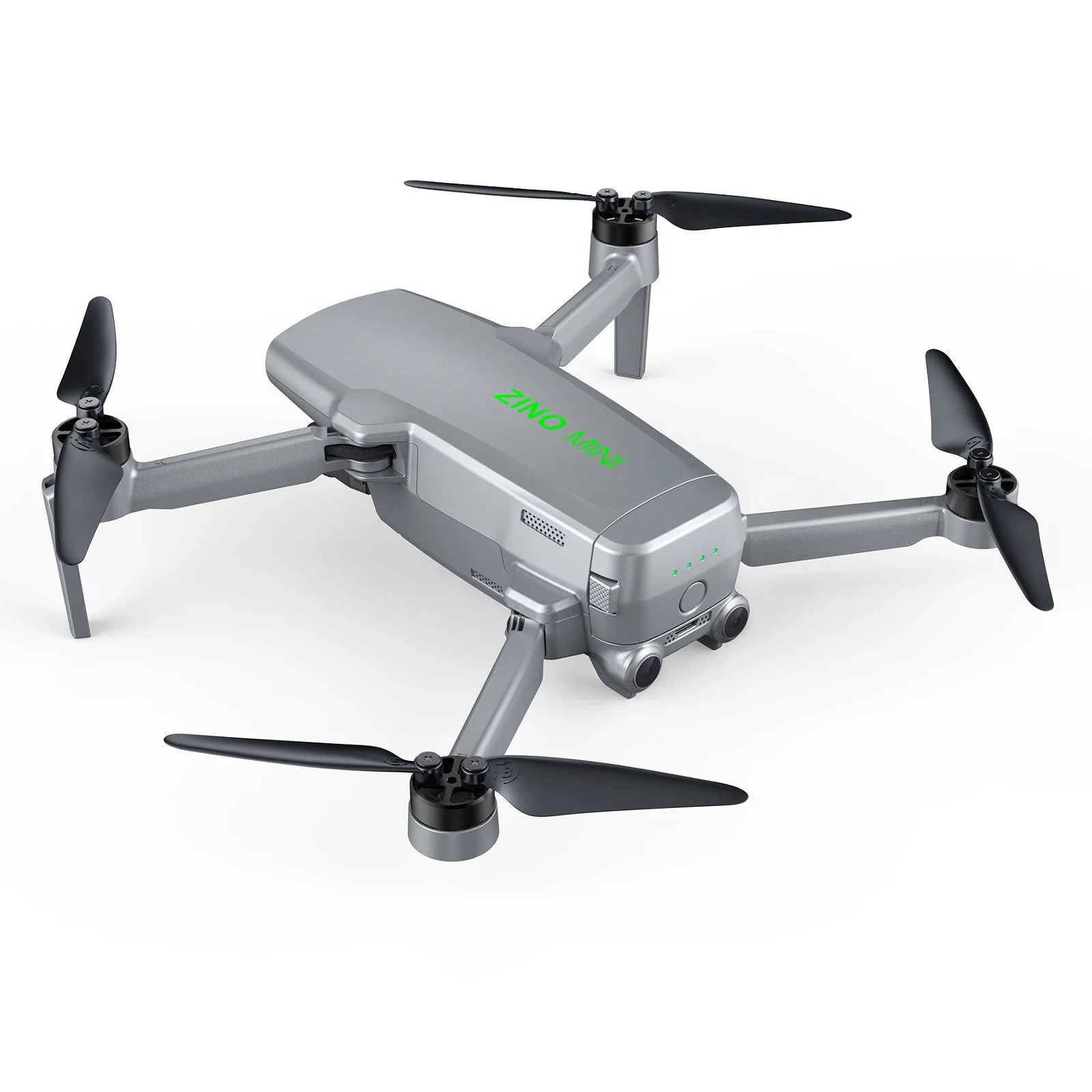

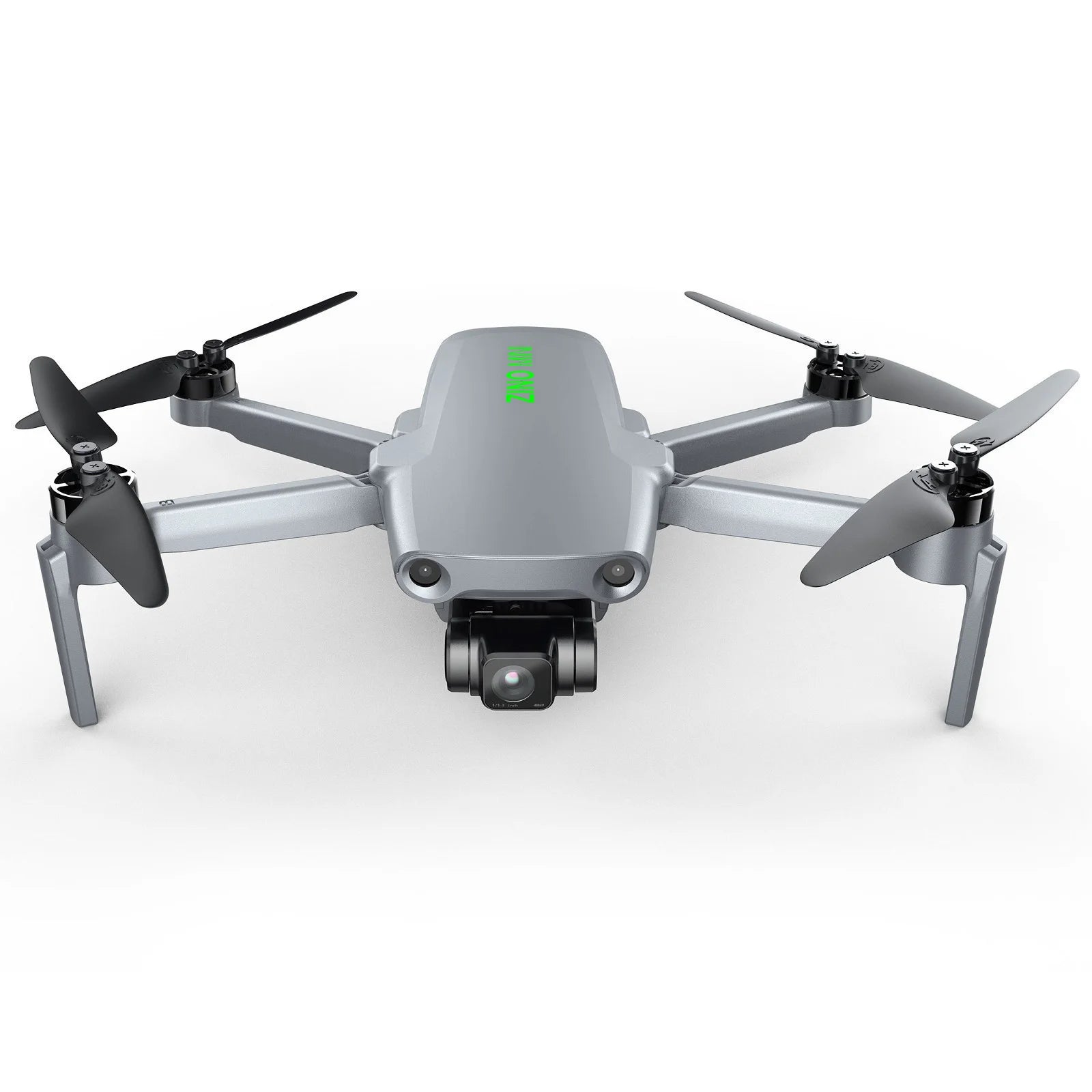

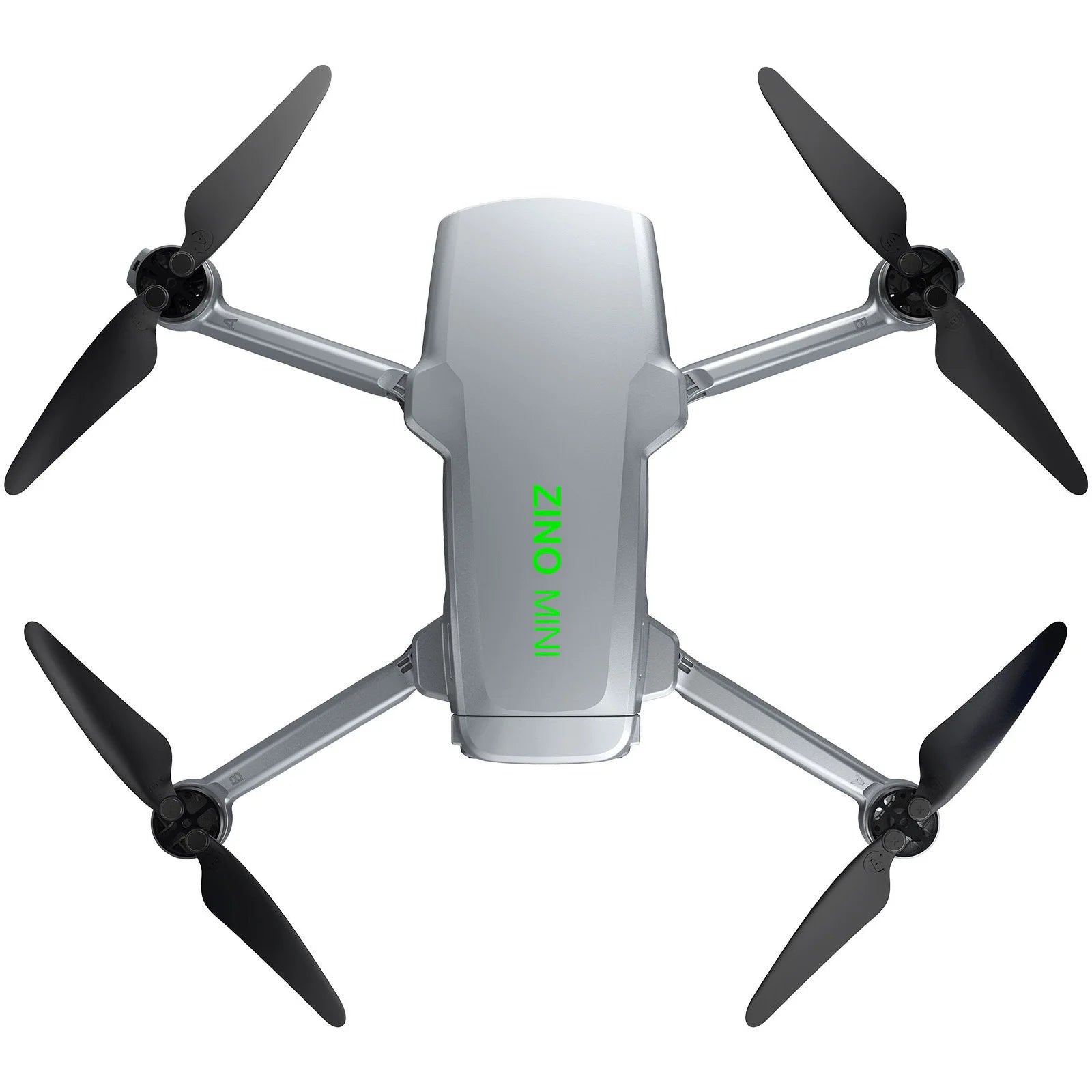

Diagonal Wheelbase

220mm

Color

Gray

Takeoff Weight(with battery)

Standard:249g(Europe and America), 200g (Japan)

Hover Accuracy

Vertical: ± 0.1m (when the visual positioning is working normally)
± 0.5m (when GPS is working normally)
Level: ± 0.3m (when the visual positioning is working normally)
± 1.5m (when GPS is working normally)

Max Rotational Speed

130°/s (S), 60°/s (N), 25°/s (F)

Max Ascension Speed

3m/s (N), 4m/s (S), 2m/s (F)

Max Descent Speed

3m/s (N), 3.5m/s (S), 1.5m/s (F)

Maximum Horizontal Flying Speed (Windless at Sea Level)

10m/s (N)
16m/s (S)

Maximum Take-off Altitude

4000m

Max Wind Speed Resistance

5-level (8.5-10.5m/s)

Max Tilt Angle

40°(S), 25°(N), 15°(F)

Positioning

GPS + GLONASS

Max Flying Time

40 minutes(measured while flying at 25km/h in windless conditions)

Power System

Maximum Working Current

16A

Propeller

Model: Foldable & Diameter 125.6mm
Color: Black

Motor

Outward Rotation Brushless Motor
1503, KV2820

ESC

Digital ESC Brushless 20A x 4

Camera

CMOS Image Sensor

1/1.3inch CMOS Sensor
2.4um Mixed Large Pixel
48 million Effective Pixels

Lens Specifications

FOV 84°
Aperture f/1.85
EFL: 6.8mm
Focus Point: 0.5m to ∞
Distortion: <1.5%

Maximum Photo Size

8000 x 6000

Maximum Video Encoding

4K@30fps

Video Resolution

4K: 3840 x 2160 @ 30fps
2.7K: 2720 x 1530 @ 30/60fps
FHD: 1920 x 1080 @ 30/60fps

Electronic Shutter Speed

3-1/8000s

Video BitrateVideo Bitrate

100Mbps-200Mbps

Supported File Systems

FAT32 (≤32 GB)
exFAT (>32 GB)

Photo Format

JPEG

Video Format

MP4 (H.265/HEVC)

Firmware Upgrade

APP Online Upgrade

Supported SD Cards

MicroSD Card, U3 or Class10 above
16G/32G/64G/128G

Image Transmission

Image Transmission System

SyncLeas 3

Working Band

5.725-5.850 GHz

MaxTransmission Distance

FCC: 10KM
CE: 6KM; SRRC: 6KM

Average Vit Rate

20 Mbps

Transmission Delay

<=200ms

Antenna

Built-in Dual Antenna

Transmission Power (EIRP)

FCC: <=26dbm; CE: <=20dbm; SRRC: <=20dbm

Max Video Bitrate

40 Mbps

Remote Control

HT018Y

Gimbal

Gimbal

HY817D

Stabilization

3-Axis (tilt, roll, pan)

Degree of Freedom

Triaxial

Max Pitch Speed

120°/s

Mechanical Range

Pitch: -120° to 45°
Roll: ± 35°
Yaw: ± 35°

Damping Method

Three-dimensional Shock Absorption

Flight Controller

FC Version

Self-developed Third-generation Flight Controller

Basic Flight Mode

Sports Mode / Normal Mode / Movie Mode

Altitude Hold Mode

Tof, Barometer

Fixed-point

Visual Optical Flow, GPS

Unlock/Lock

Outer "Eight" Unlock/Lock

One Key Take-off/Landing

APP Supported，Remote Control Unsupported

Headless Mode

√

Out of Control Protection

√

Low Battery Return

√

Home Visual Recognition

(search for drone apron)

√

Visual Tracking

Third-generation Tracking Technology (ATVT 3.0)

Waypoint Flight

√

Flying Around

√

Ray Flight

√

Time-lapse Photography

TBD

Motor Stall Protection

√

Firmware Upgrade

APP Online Upgrade

Sensing System

Forward

Binocular Visual Perception,Precision Measurement Distance <12M
Fluctuate <0.5M, Perception Distance >15M

Backward

Binocular Visual Perception,Precision Measurement Distance <12M
Fluctuate <0.5M, Perception Distance >15M

Downward

Monocular Optical Flow, Tof Ranging
Effective Ranging Range 0.3-5M，Fluctuate <0.1M

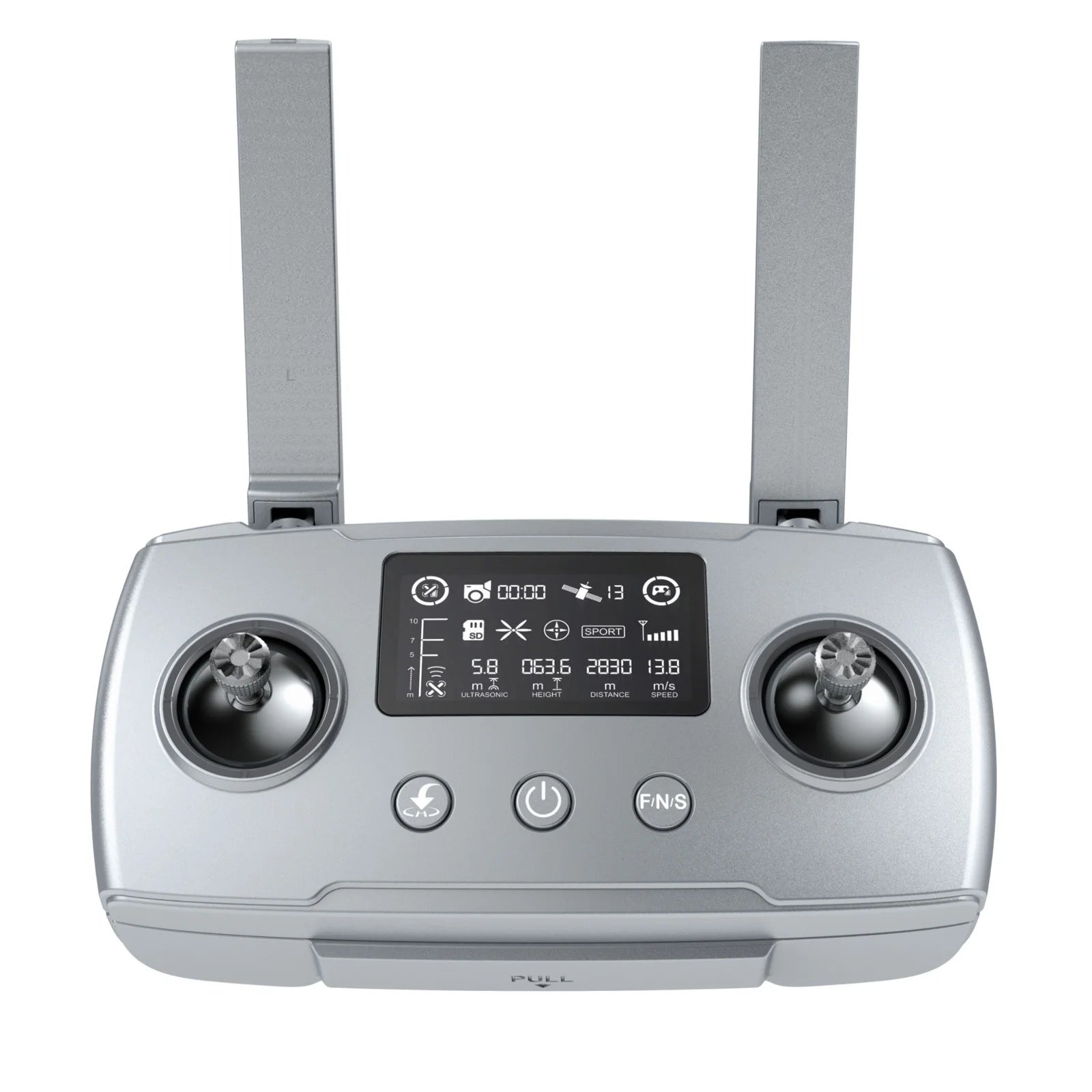

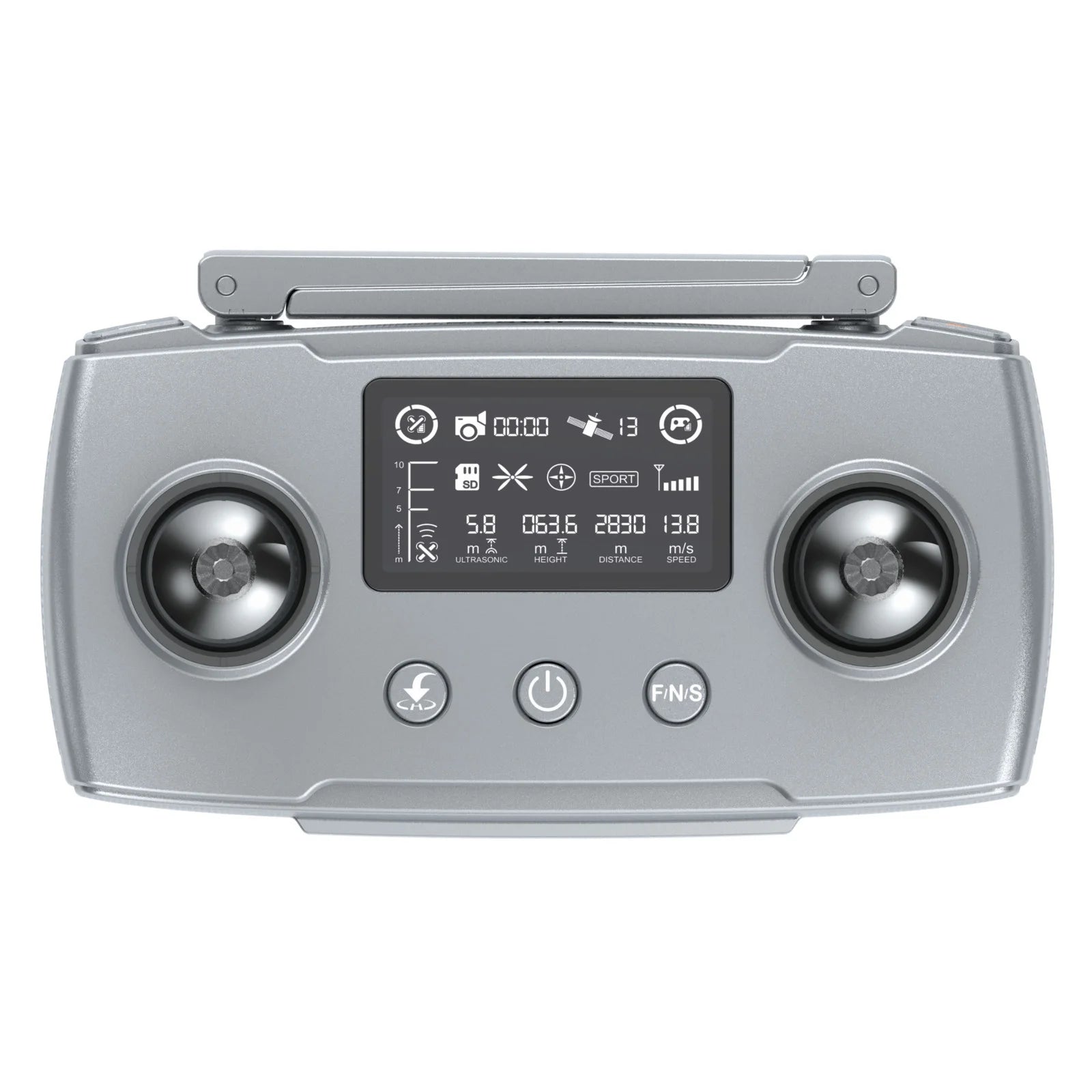

Remote Control

Color

Gary

Operating Frequency

5.725-5.850 GHz

Display

Highlight LED Display

Operating Environment Temperature

-10 Deg.C- 60 Deg.C

Maximum Effective Signal Distance

5.8Ghz FCC: 10KM
CE: 6KM; SRRC: 6KM

Equivalent Isotropic Radiated Power

FCC: <=26dBm; CE: <=20dBm;
SRRC: <=20dBm

Built-In Battery

3350mAh

Mode

Mode 2 (Left Hand Throttle)

Buzzer

Support

Support Mobile System

Android, iOS

Working Time

2.5h (Normal Flight Time)

Rocker Back to Center Accuracy

4%

Interfaces Type

Lighting / Micro USB / Type-C

Battery

Battery Type

Lithium Battery

Capacity

3000 mAh

Standard Voltage

3.6x2=7.2V

Charging Limit Voltage

7.25V

Discharge Rate

8C

Charging Time

90 minutes

Weight

101.84g

Working Environment Temperature

0 Deg.C- 50 Deg.C

Charging Environment Temperature

0 Deg.C- 40 Deg.C

Smart Battery Balance

√

Intelligent Power Management

√

Automatic Discharge Protection

√

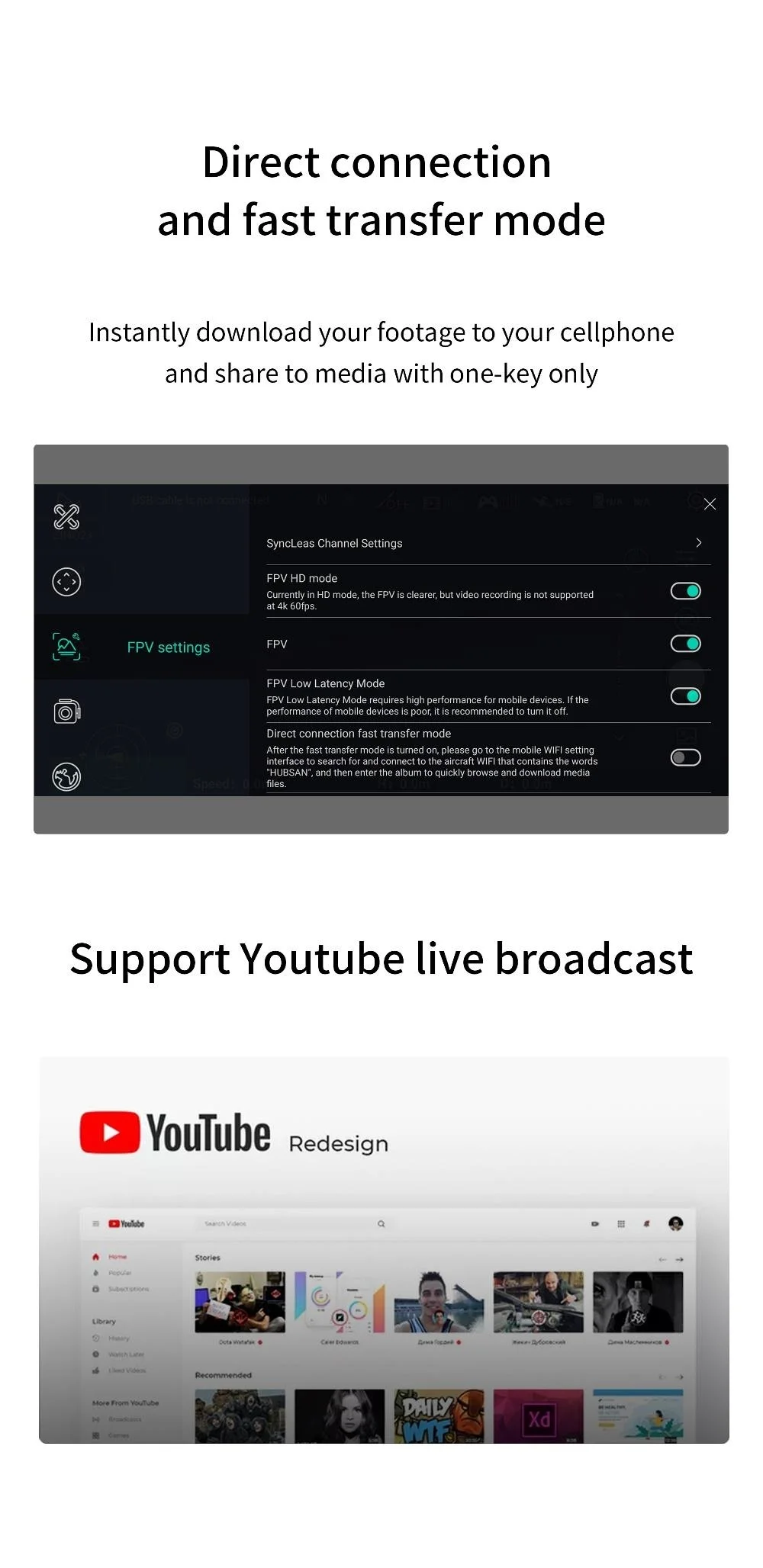

APP

APP Name

X-Hubsan 2

Mobile Device

Requirements

iOS 10.0 or higher
Android 6.0 Or higher
