Description：

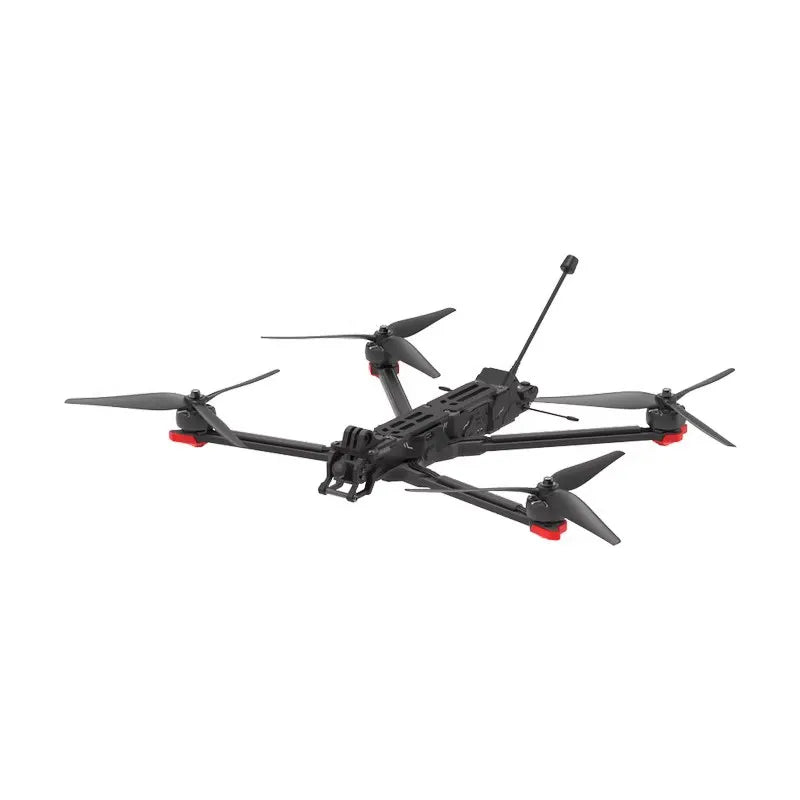

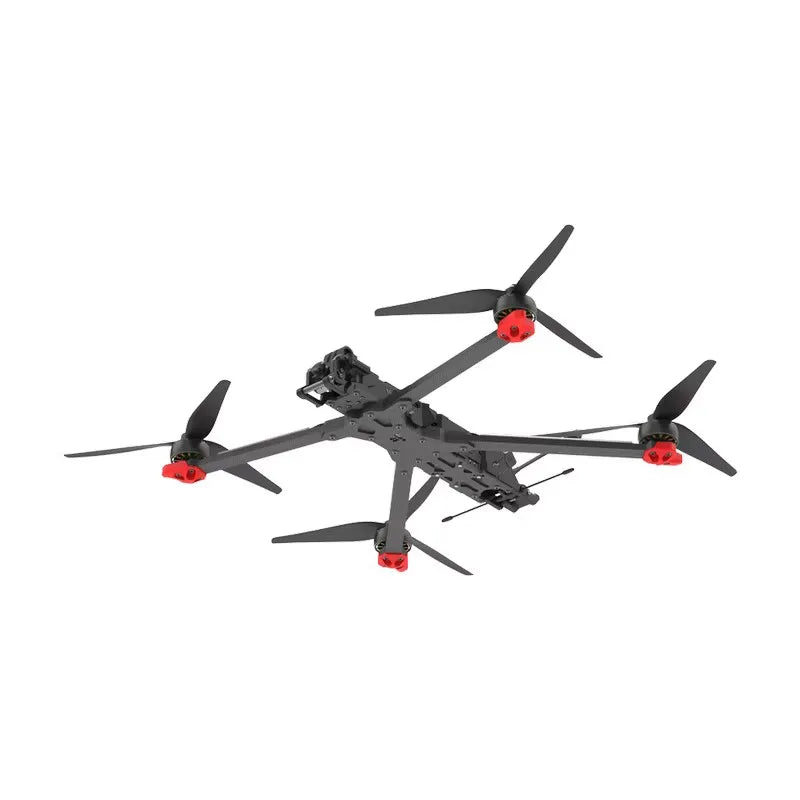

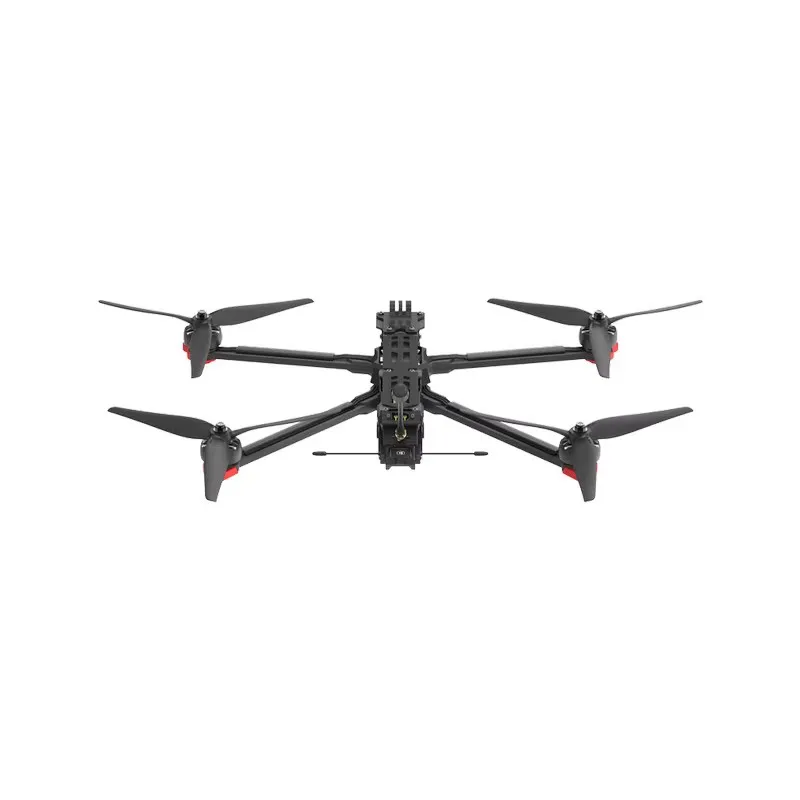

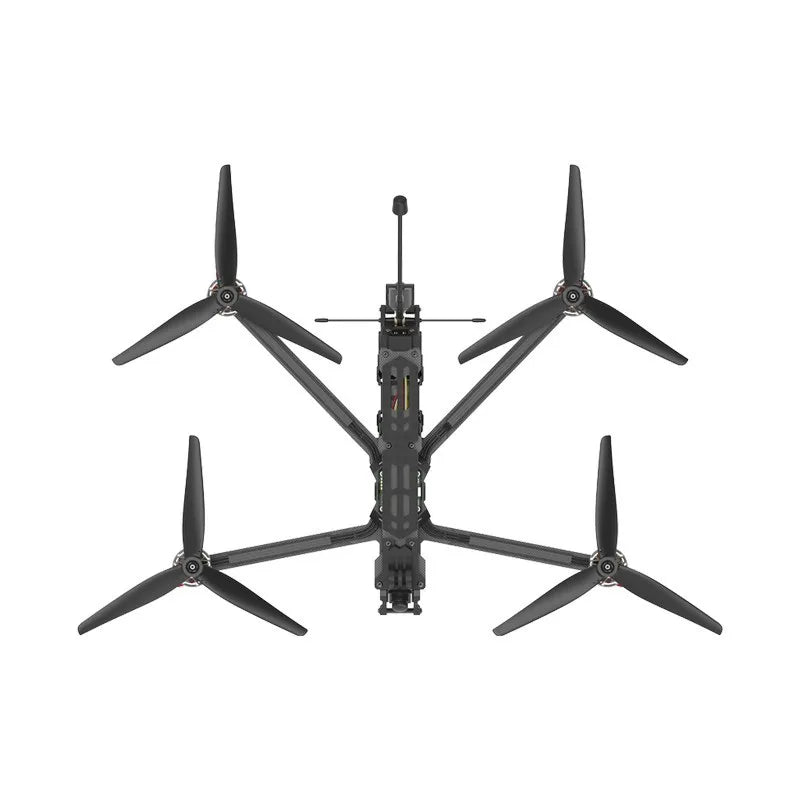

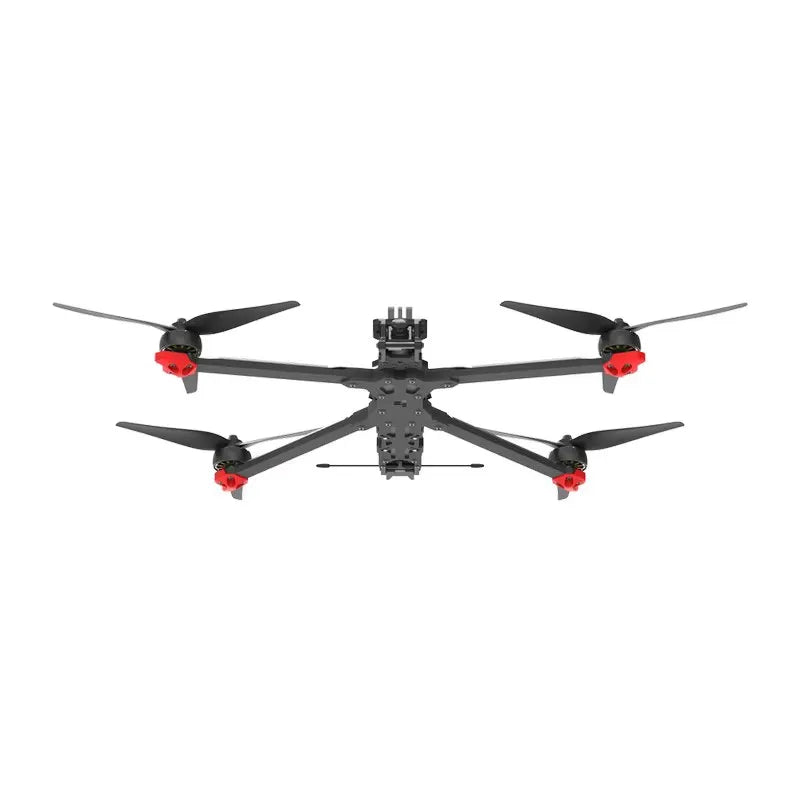

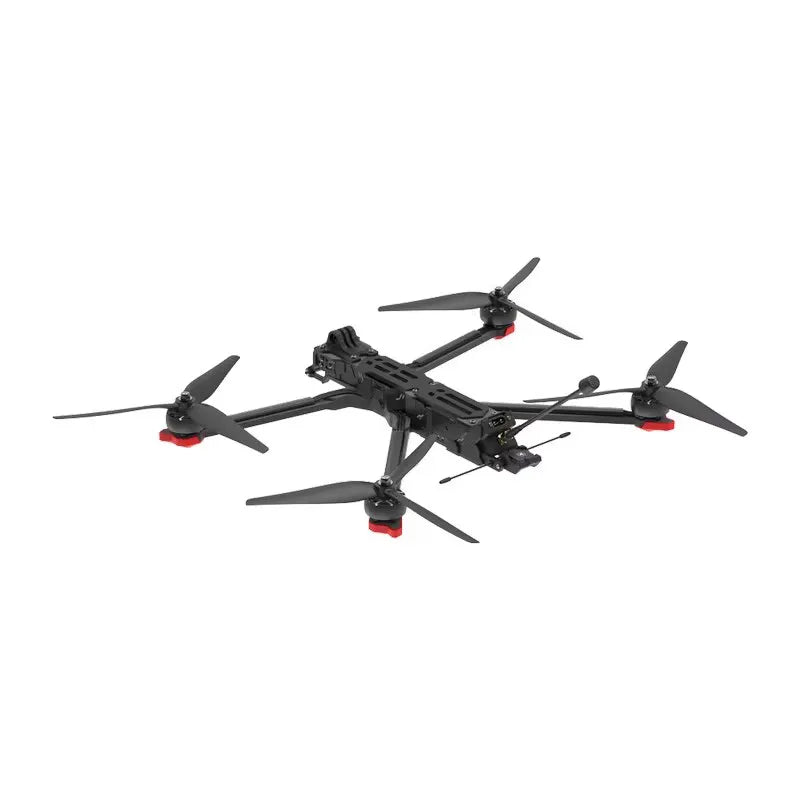

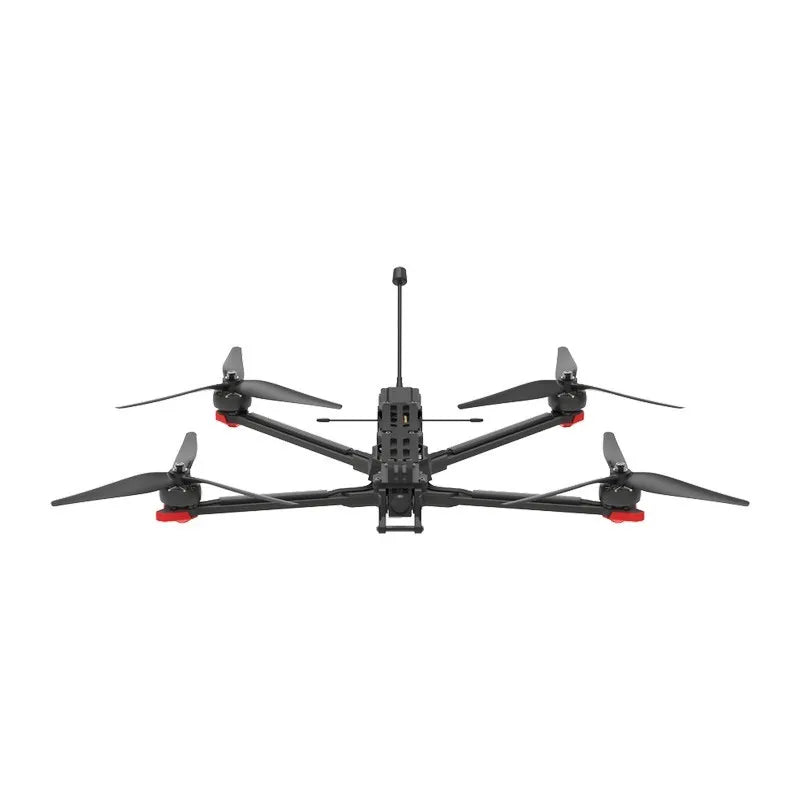

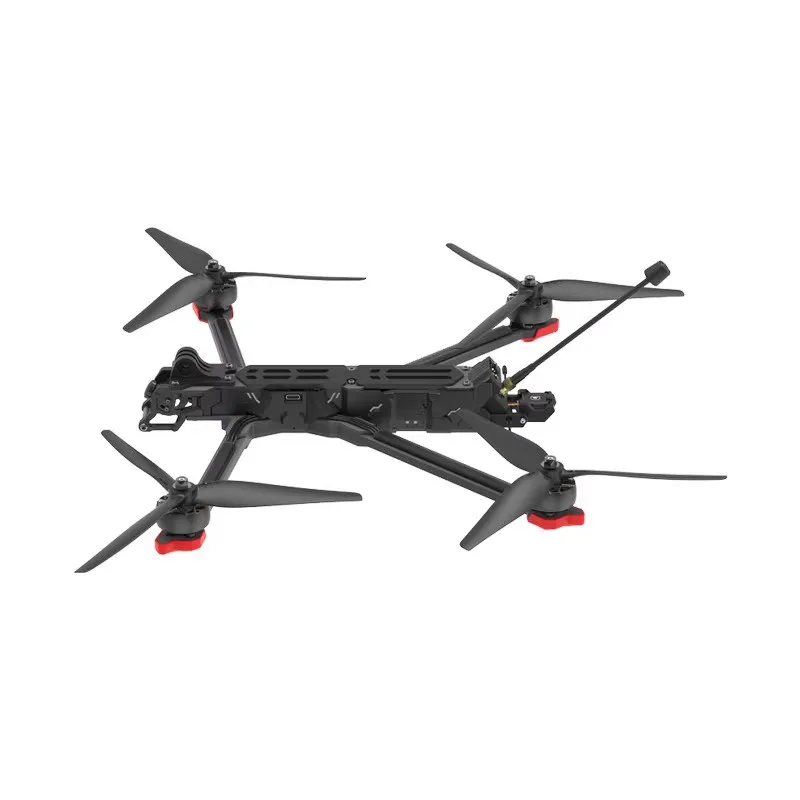

The KING of Long Range FPV! A super-efficient iFlight 9inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 9 inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended for slow cruising.

HIGHLIGHTS:

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Chimera9 Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specifications:

Product Name: Chimera9 6S Analog

Model: Chimera 9inch

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: BLITZ Whoop 1.6W VTX

Geometry: DeadCat(DC)

Frame: 405mm wheelbase

Motor: XING2 2809 motors

Prop: 9X4X3 propellers

Weight: 776g (Without Battery)

Dimensions (L×W×H)：360x235x34mm

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antennas

GNSS: GPS + Galileo

Payload: 1.5-2.2kg

Video Transmission

Product Name: BLITZ 1.6W VTX

Output Power: 0-25-400-800-1600mw

Input Volts: 12V

Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: IPEX

Mounting Hole: 25*25/φ1.6mm

Weight: 16.5 gram

Dimensions：L37mm*W31.5mm*H10mm

Packing List

1 x Chimera9 6S Analog BNF

1 x Battery pad

1 x Antennas

1 x Propellers(Pairs)

2 x Battery straps
