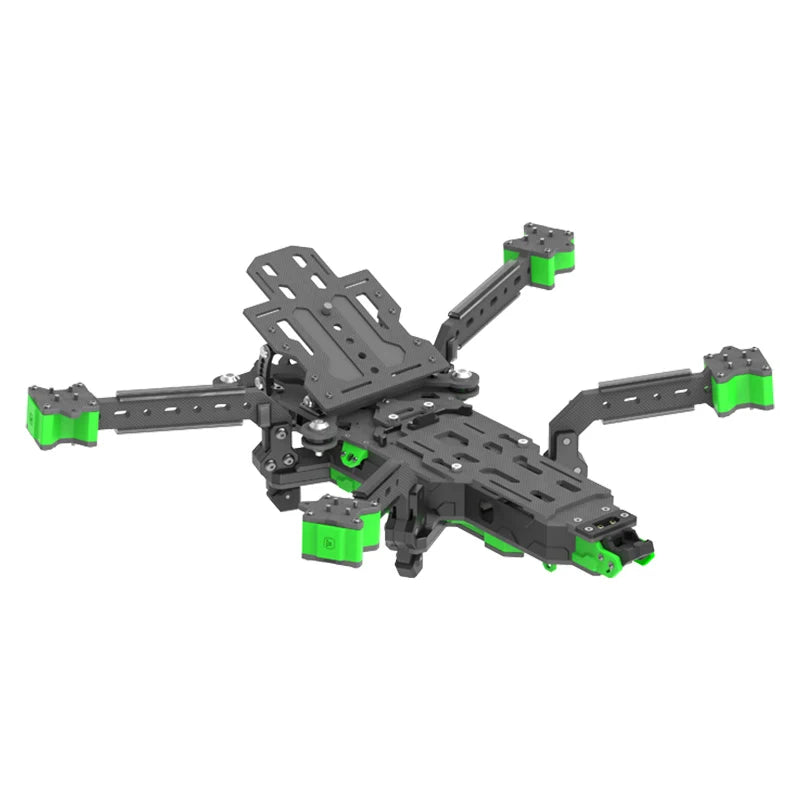

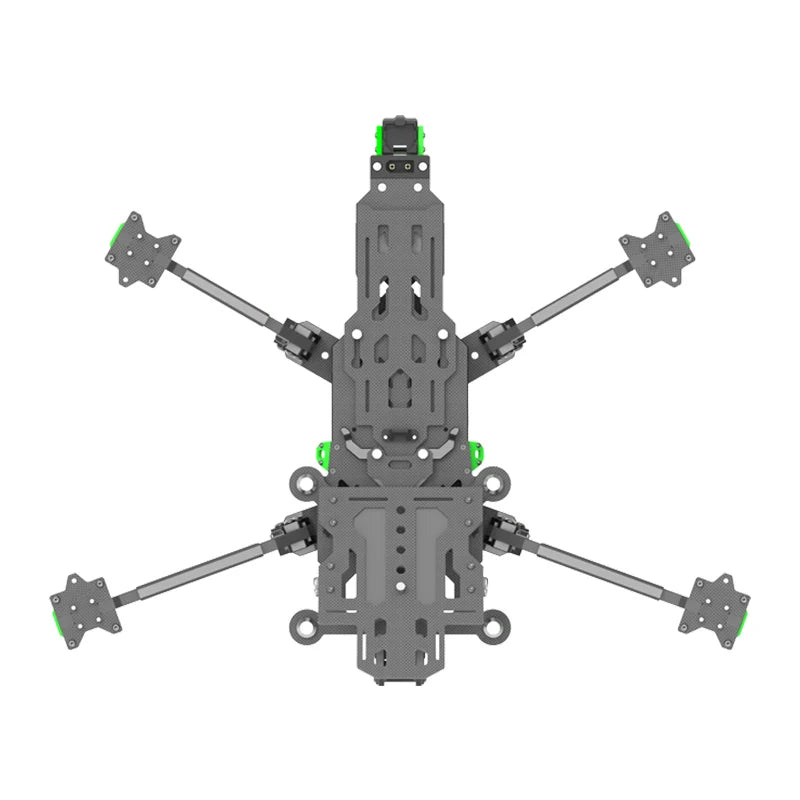

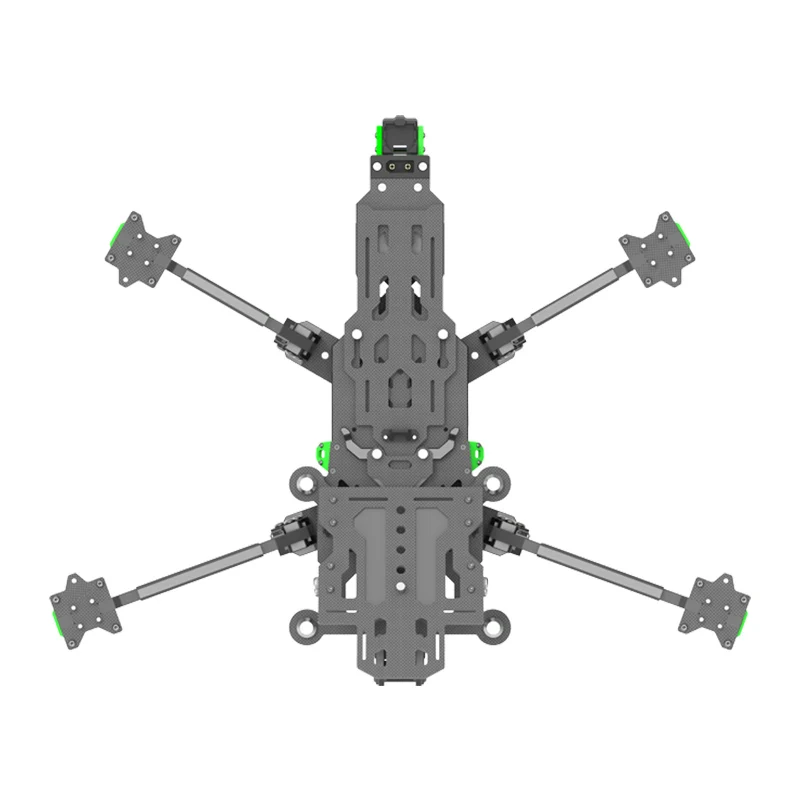

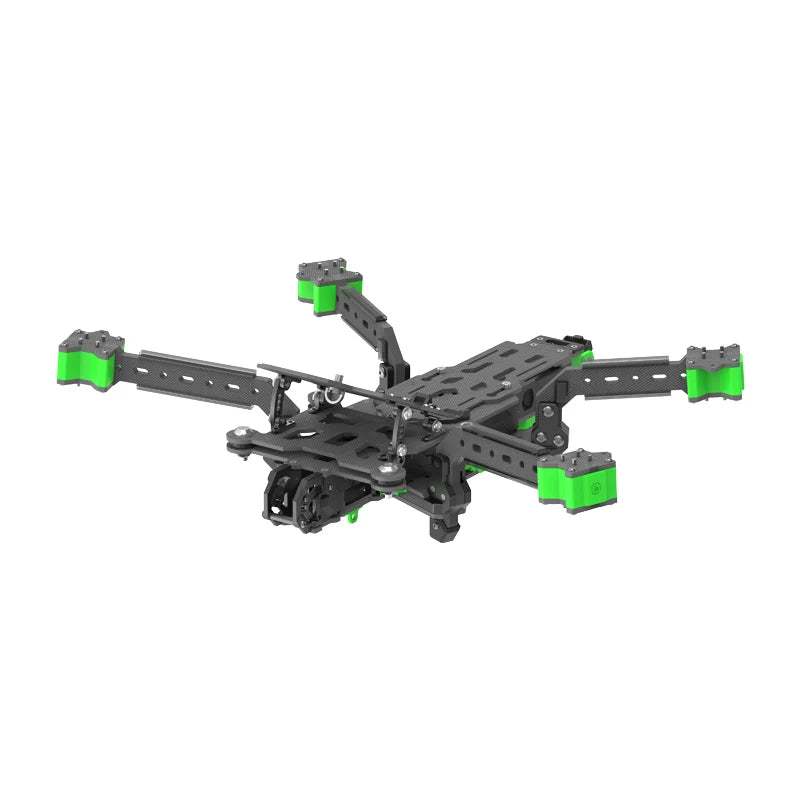

Taurus X8 Pro HD Cinelifter Frame

Description
Let's introduce our new iFlight Taurus X8 Pro BNF！

Designed for carrying big payloads offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC, etc)

Features
Optimized CG through the adjustable camera and battery mount
Stable silicon-ball decoupled camera CNC mount
Redundant ESC and motor configuration
2kg max payload for various cinema and DSLR cameras

Changelog
March 25, 2023: This Frame kit is compatible with the DJI O3 air unit.

Specifications
Wheelbase: 450mm
Frame Dimension: 428*249 (body dimension)
Arm Thickness: 8mm
Bottom Plate Thickness: 3.5mm
Top Plate Thickness:3mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Motor Mounting: 19x19mm
VTX Mounting: 30.5*30.5mm/35*35mm
Weight: 1400grams (Included no TPU Parts)

Packing included
1 x Taurus V3 Pro HD Cinelifter Frame
2 x 20x400mm battery strap (Color May Vary)
2 x 20x410mm battery strap (Color May Vary)
2 x 20x500mm battery strap (Color May Vary)
1 x Taurus X8 Hardware Accessories Kit
1 x CNC Aluminum Alloy Cam Mount
1 x DJI Air unit mount TPU
1 x 3d Printed Parts Kit
2 x Battery Anti-slip pads

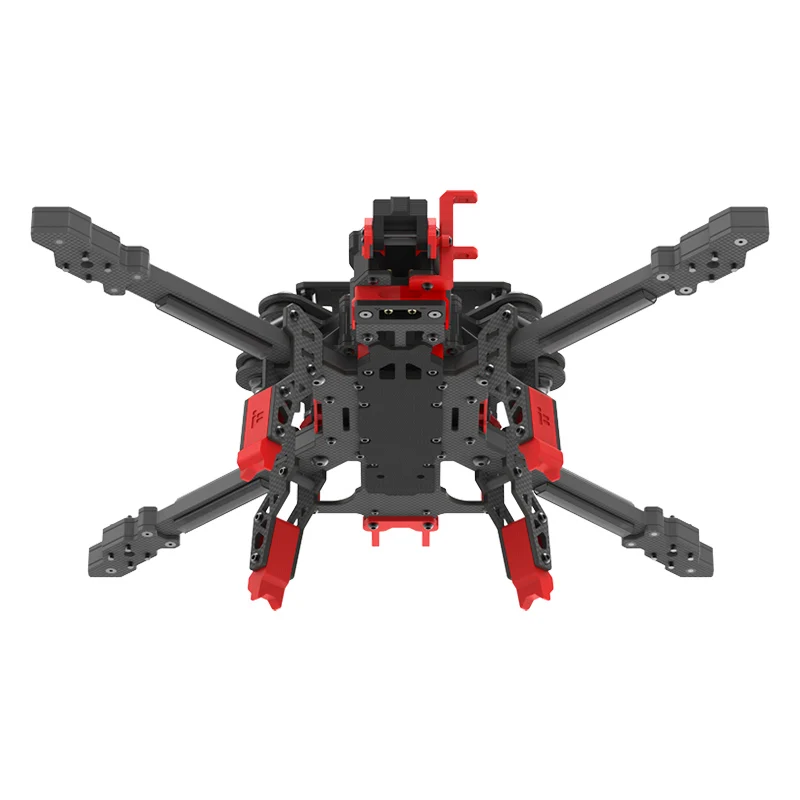

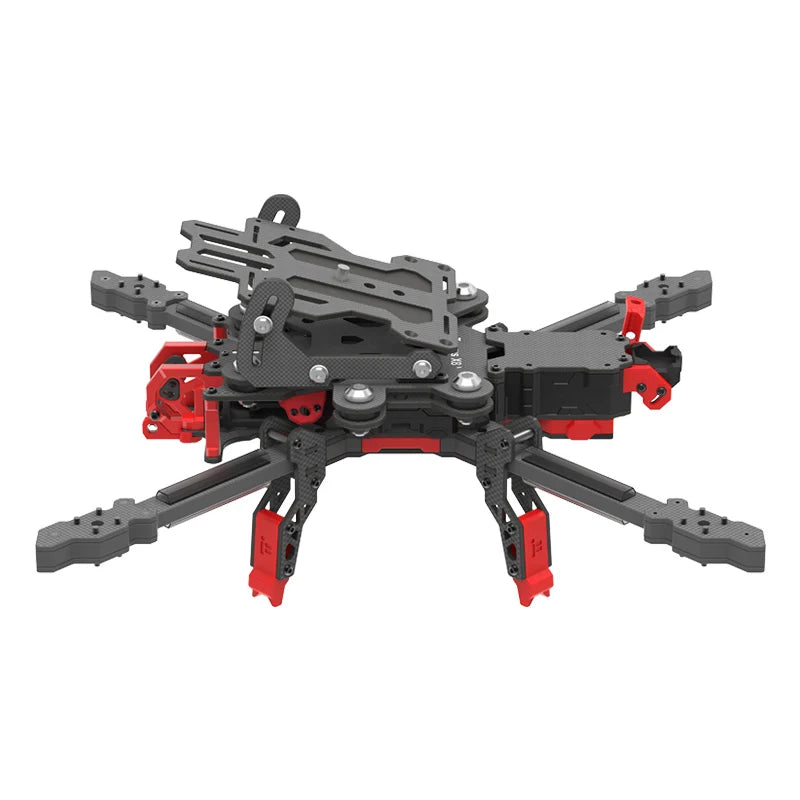

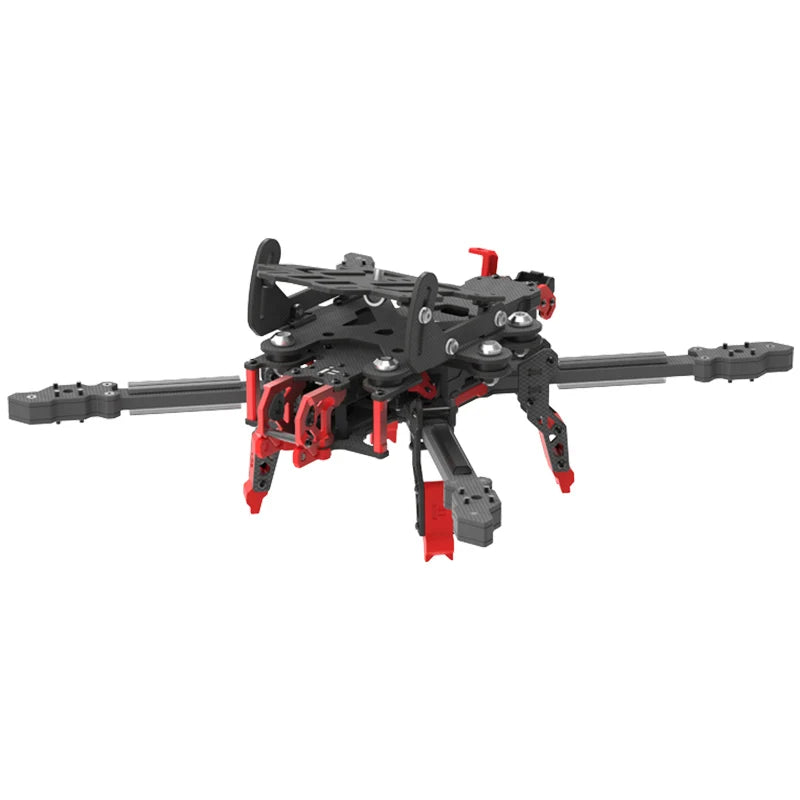

Taurus V3 X8 HD Cinelifter Frame

Description
The Taurus X8 V3 BNF Cinelifter Frame Kit is aimed towards carrying big payloads, offering a soft-damped

universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC, etc).

Features
Optimized CG through the adjustable camera and battery mount
Stable silicon-ball decoupled camera CNC mount
Redundant ESC and motor configuration
2kg max payload for various cinema and DSLR cameras
Lightweight Side Panels - Keep Your Rig Clean

Changelog
March 25, 2023: This Frame kit is compatible with the DJI O3 air unit.

Specifications
Wheelbase: 320mm
Diagonal Distance：120 mm
Frame Dimension: L283*W393*H30 mm
Arm Thickness: 8mm
Bottom Plate Thickness: 3mm
Top Plate Thickness:3mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Motor Mounting：19x19mm
VTX Mounting：30.5*30.5mm
Weight: 940grams (Included no TPU Parts)

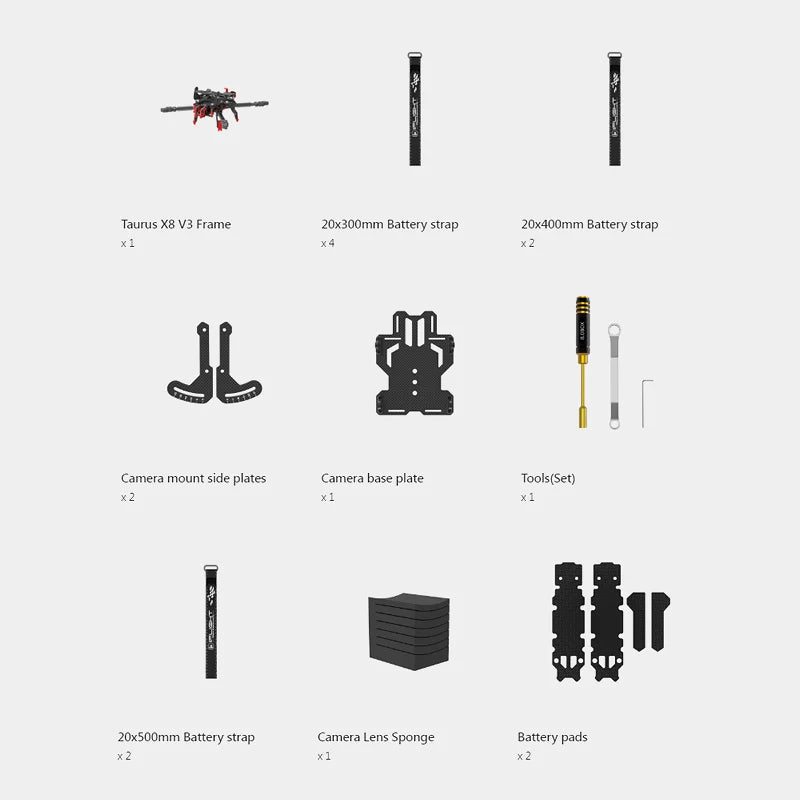

Packing included
1 x Taurus V3 X8 HD Cinelifter Frame
2 x 20x300mm battery strap (Color May Vary)
2 x 20x400mm battery strap (Color May Vary)
2 x 20x500mm battery strap (Color May Vary)
1 x Aluminum Quick Release Camera Clamp
1 x Taurus X8 Hardware Accessories Kit
1 x CNC Aluminum Alloy Cam Mount
1 x DJI Air unit mount TPU
1 x 3d Printed Parts Kit
2 x Battery Pad
1 x LED mount
10 x Dampers
2 x Battery Anti-slip pads
