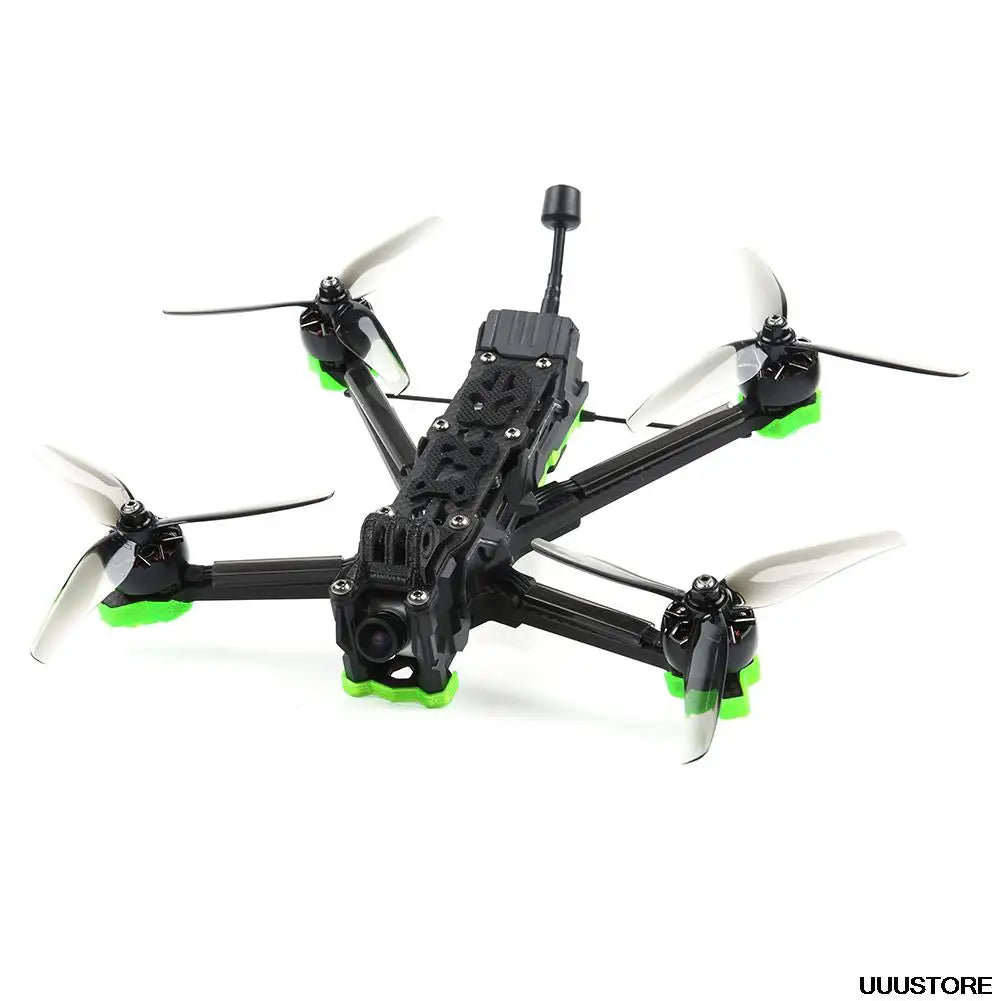

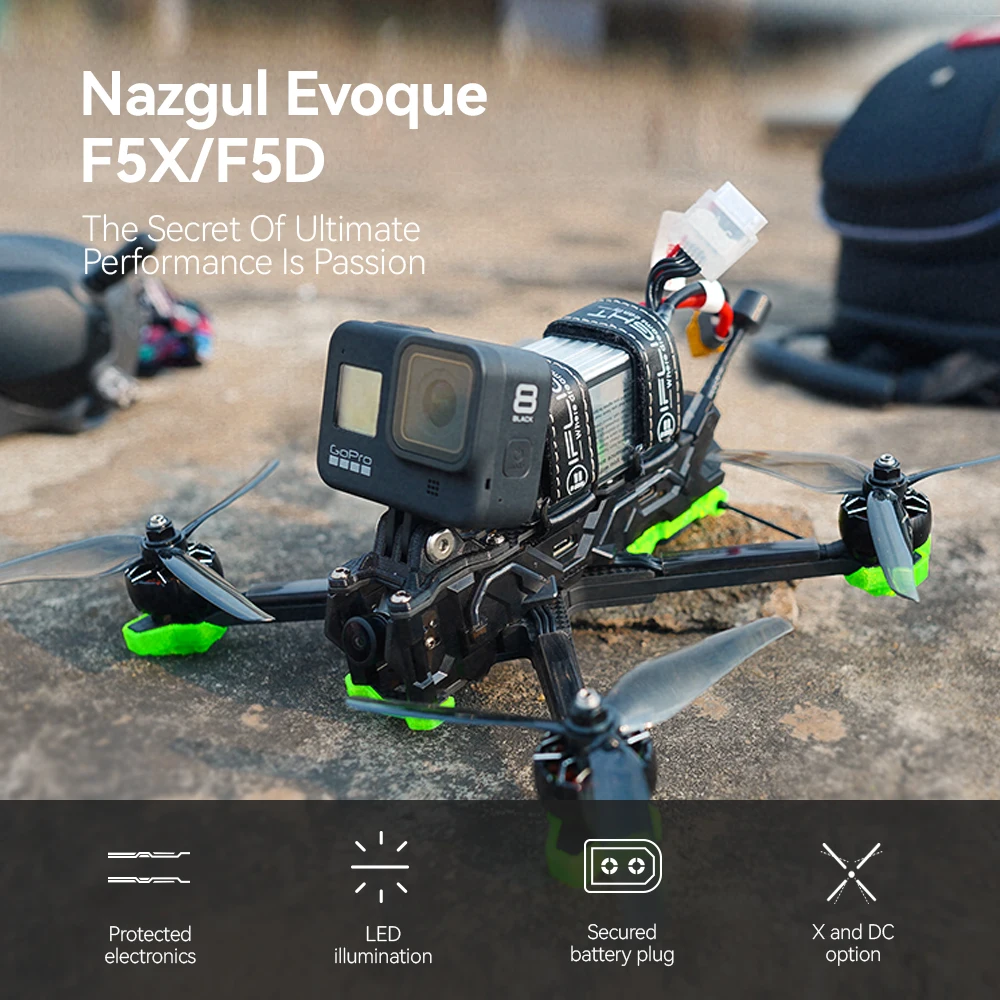

1.That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

2.Lightweight Side Panels - Keep Your Rig Clean

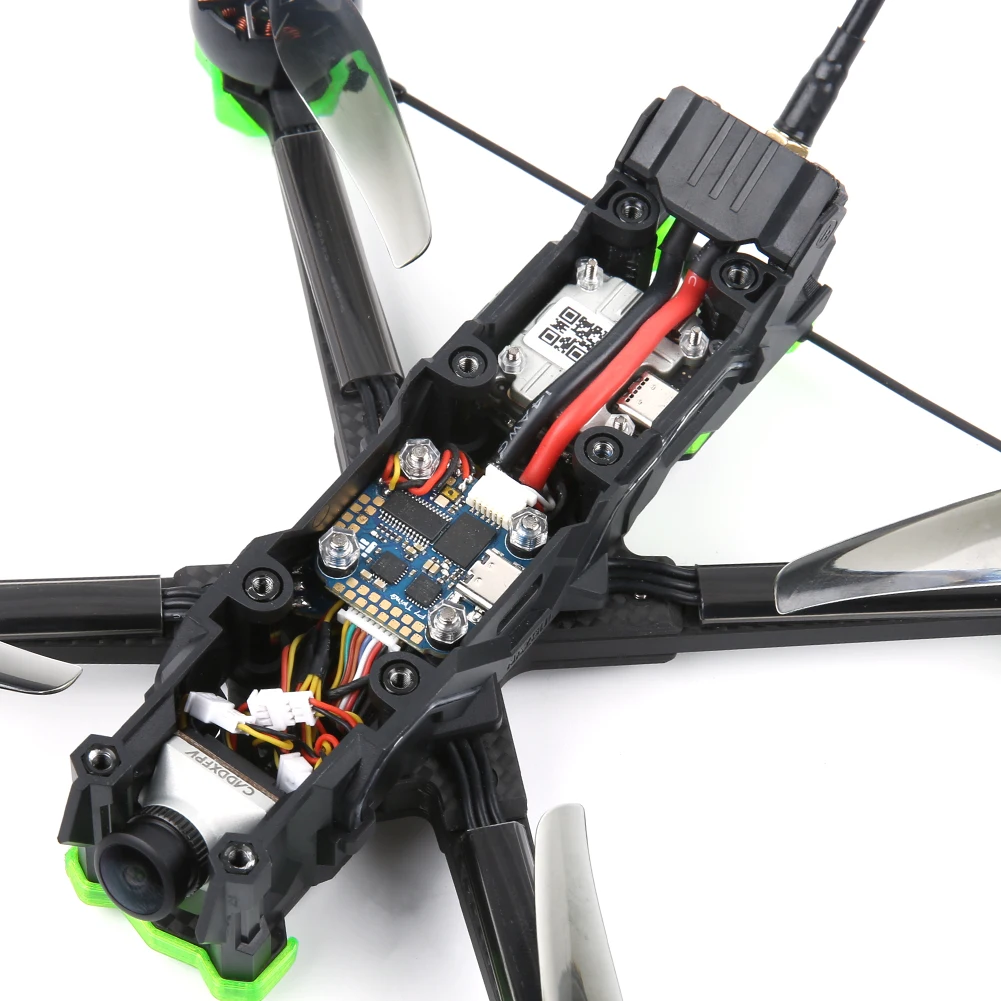

3.Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well... These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

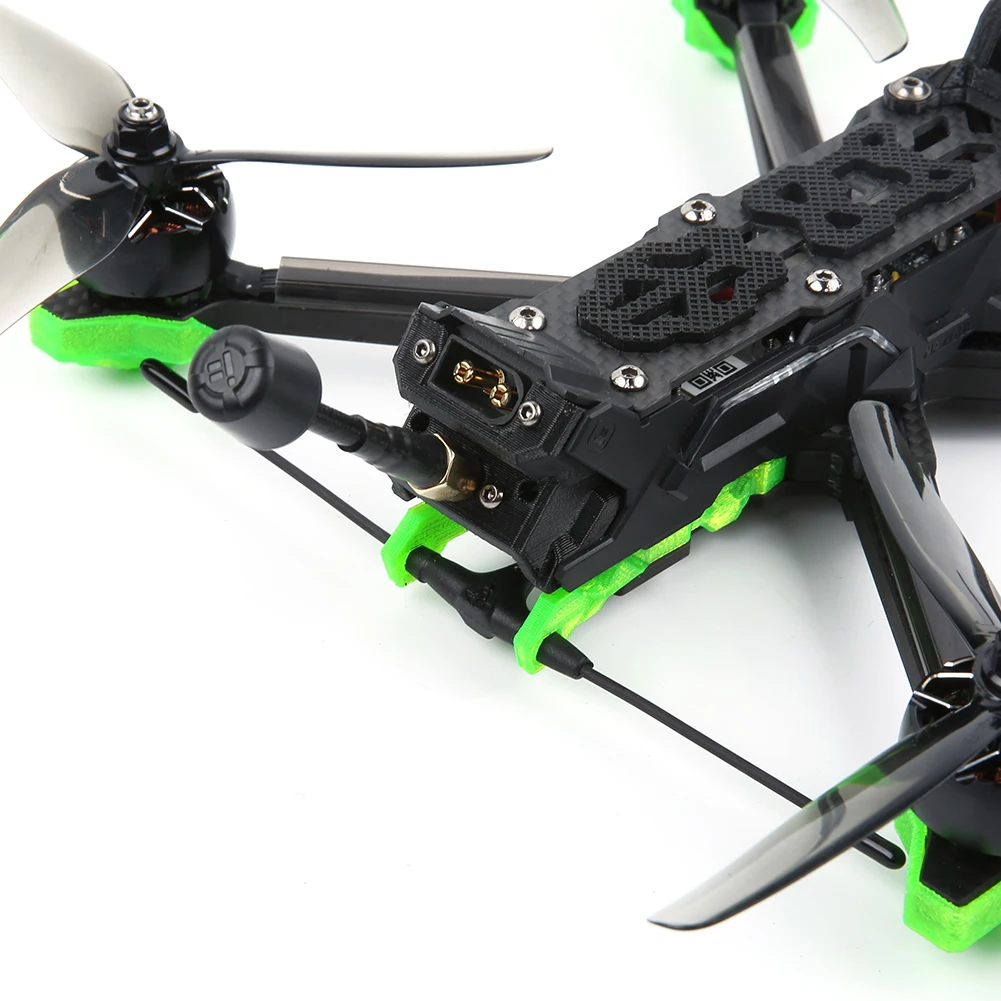

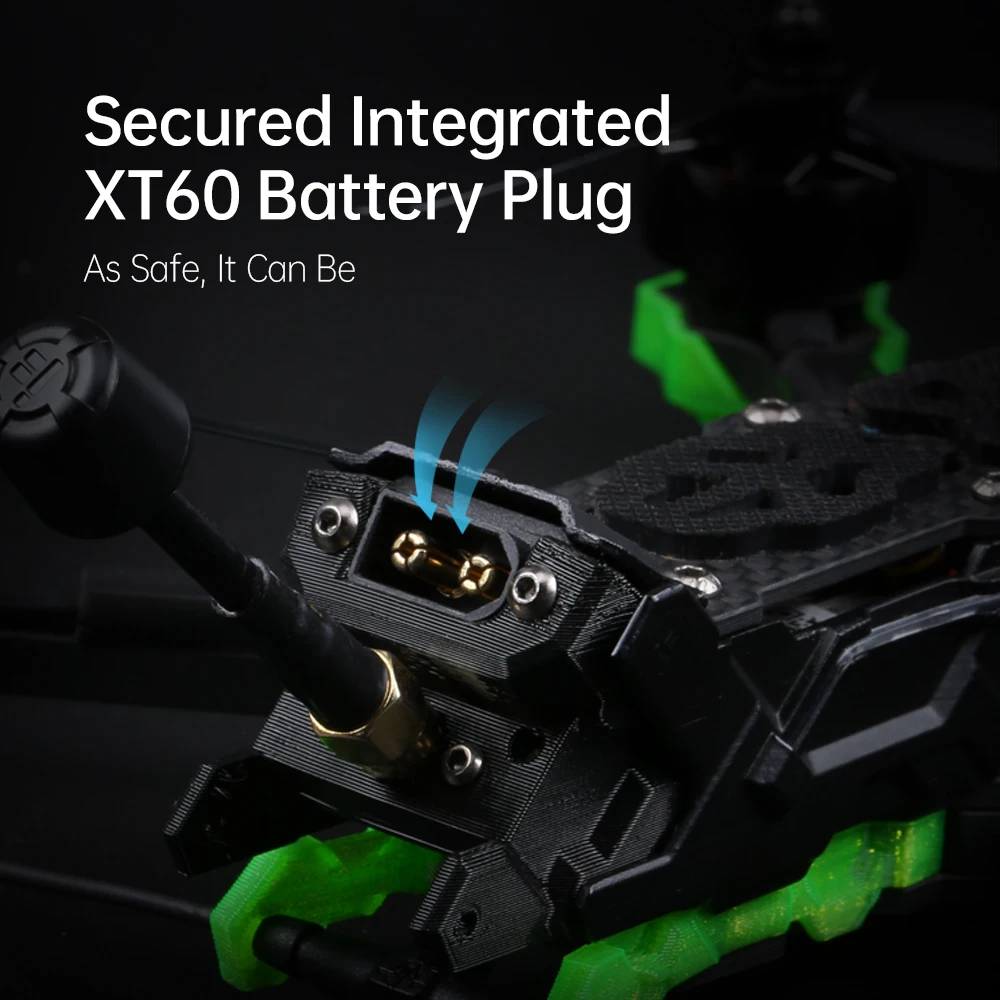

4.Secured Integrated XT60 Battery Plug - As Safe, It Can Be Dangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

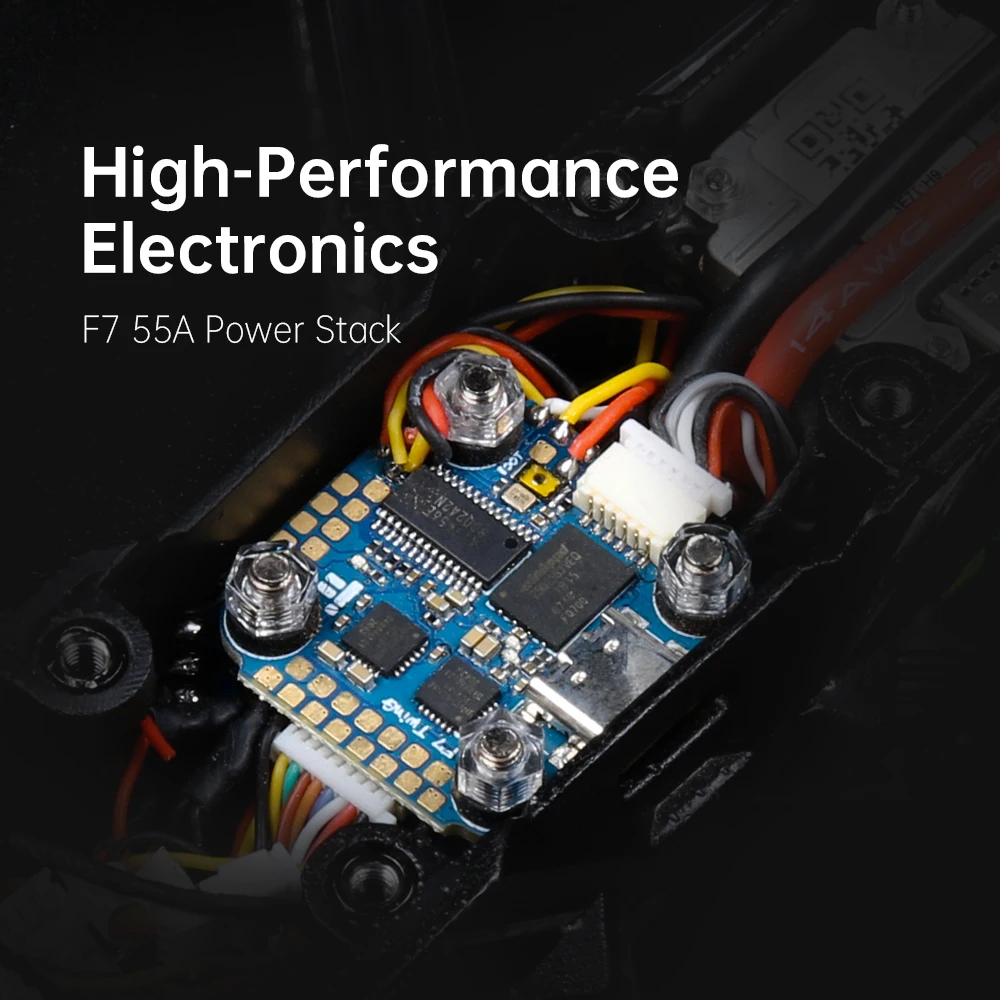

5.High-Performance Electronics - F7 55A Power Stack

Our BLITZ Mini F7 TwinG flight control with Gyro Fusion technology, modern USB type-C plug, 16MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new BLITZ Mini 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.

6.XING2 Performance Motors - The Best Motors Just Got Better

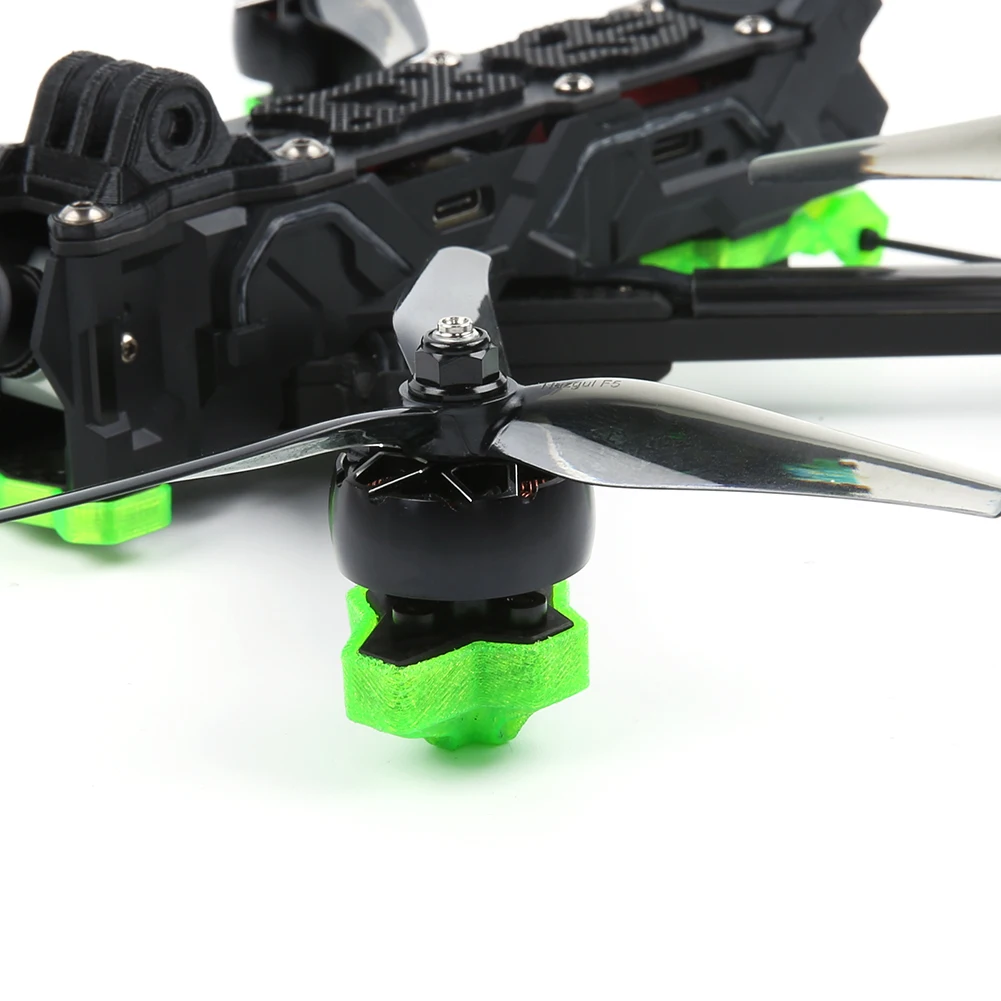

7075 aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.

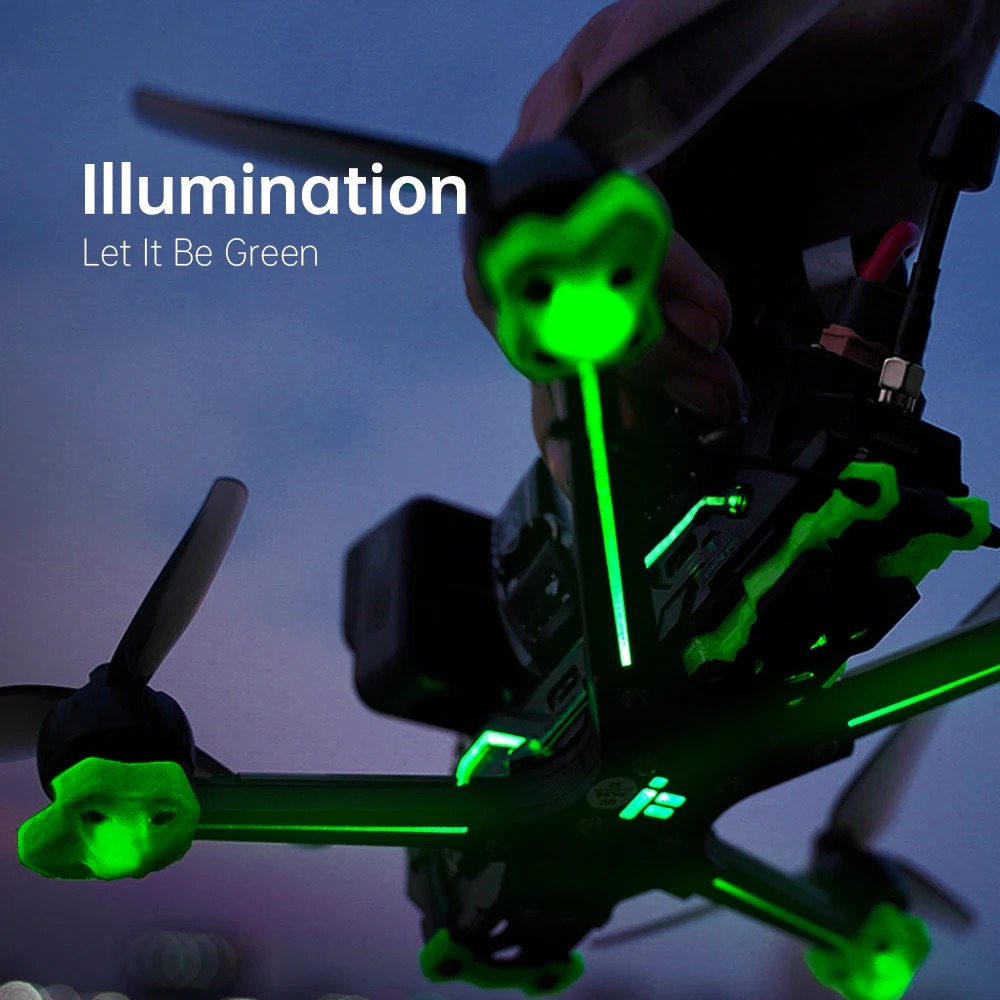

7.Illumination - Let It Be Green

360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.

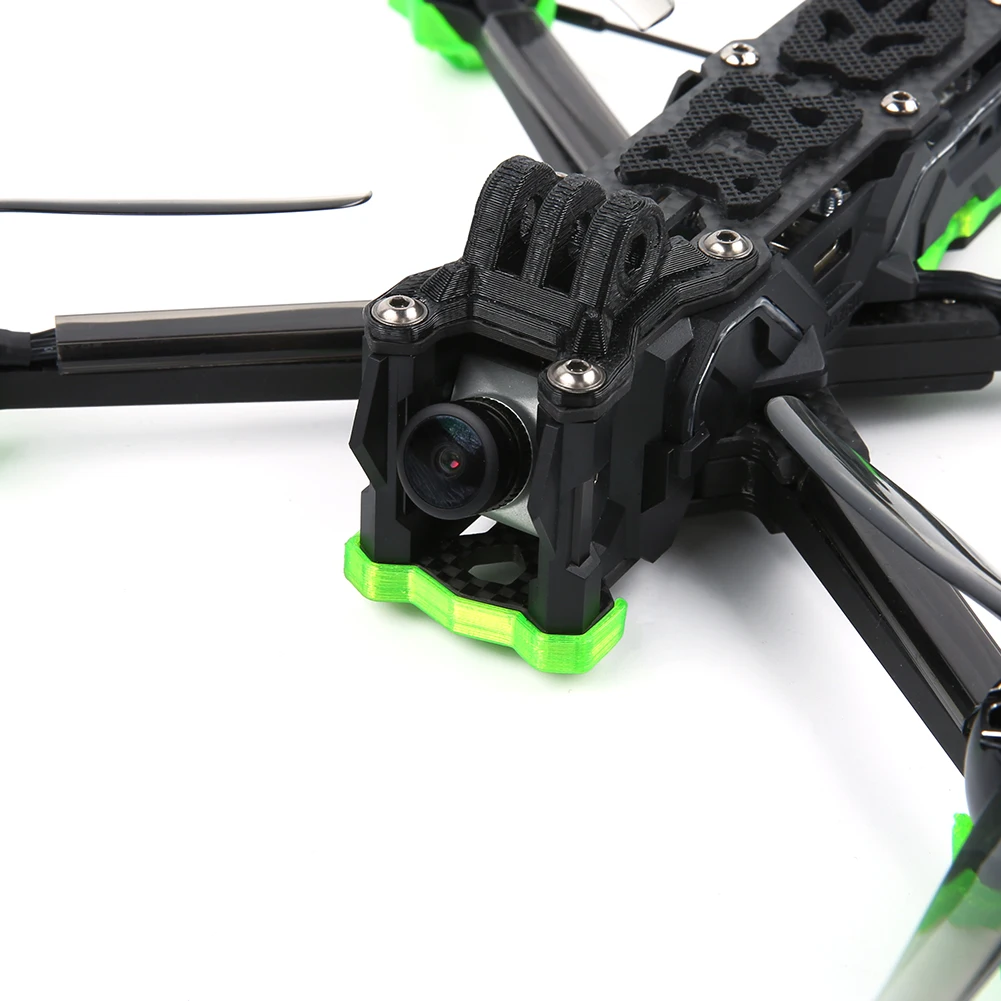

8.Digital HD Experience - DJI Camera Vista

Equipped with the DJI Digital FPV system with 50mBit transmission for 720P video feed on your DJI FPV Goggles and range you've never expected with your old analog VTX. We are using the new DJI Camera Vista HD system, installed in the back of your quad. The DJI camera offers better image quality than other CaddX cams. Better low light performance and more detailed shadows. In daylight similar to the Nebula Pro with improved dynamic range.

Changelog:

August 2021: The color of 915 antenna mount changed from green to black, change the foam inner packaging to blister material.

August 2021: Before two antennas changed to one.

October 23, 2021: Before Polar Caddx Vista changed to DJI Camera Vista.

October 2021: Before SucceX-E mini F7 Stack(F7+45AESC) changed to BLITZ MINI (F7+BLITZ E55 4-in-1 ESC)

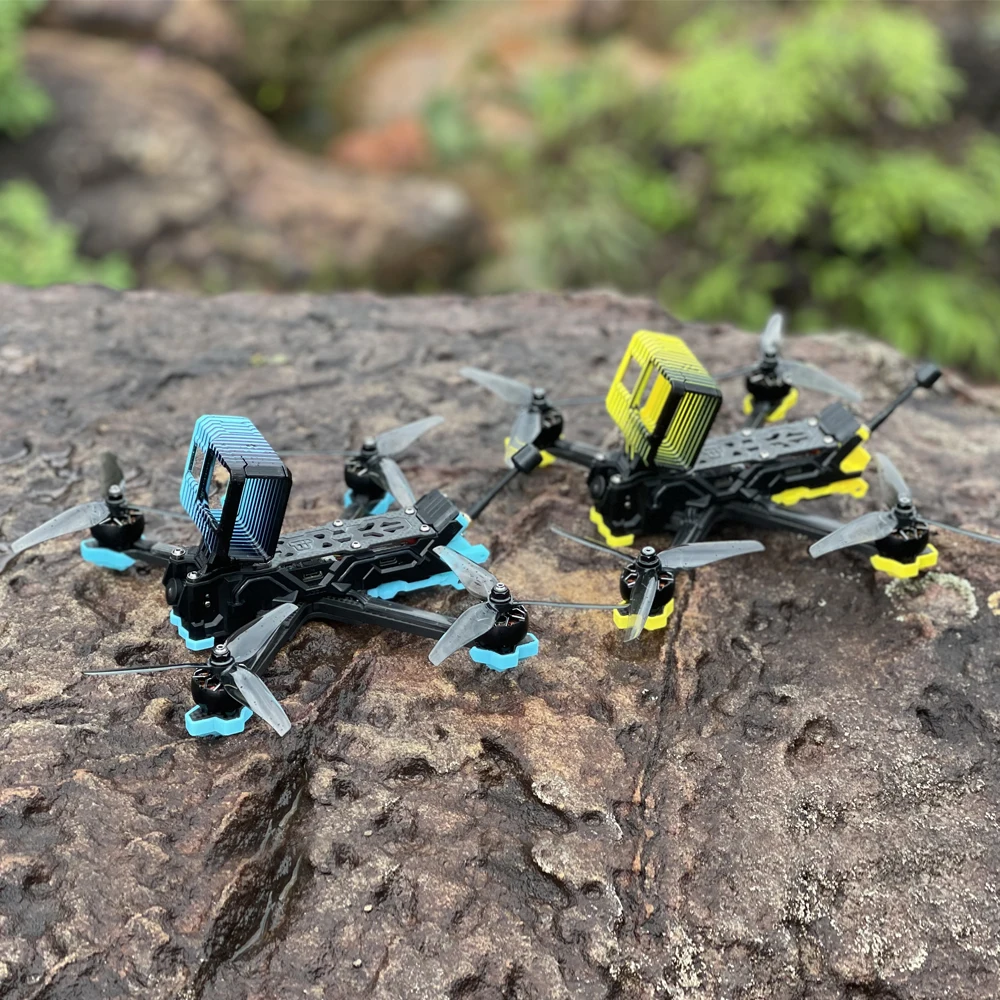

November 2021:  TPU color is random, you may receive yellow, tiffany blue, green, or blackish green.

February 2022: Before BLITZ MINI F7 V1(MPU6000) changed to BLITZ MINI F7 V1.1 (BMI270)

Specifications:

Total Dimensions: 136*190mm (body dimension)

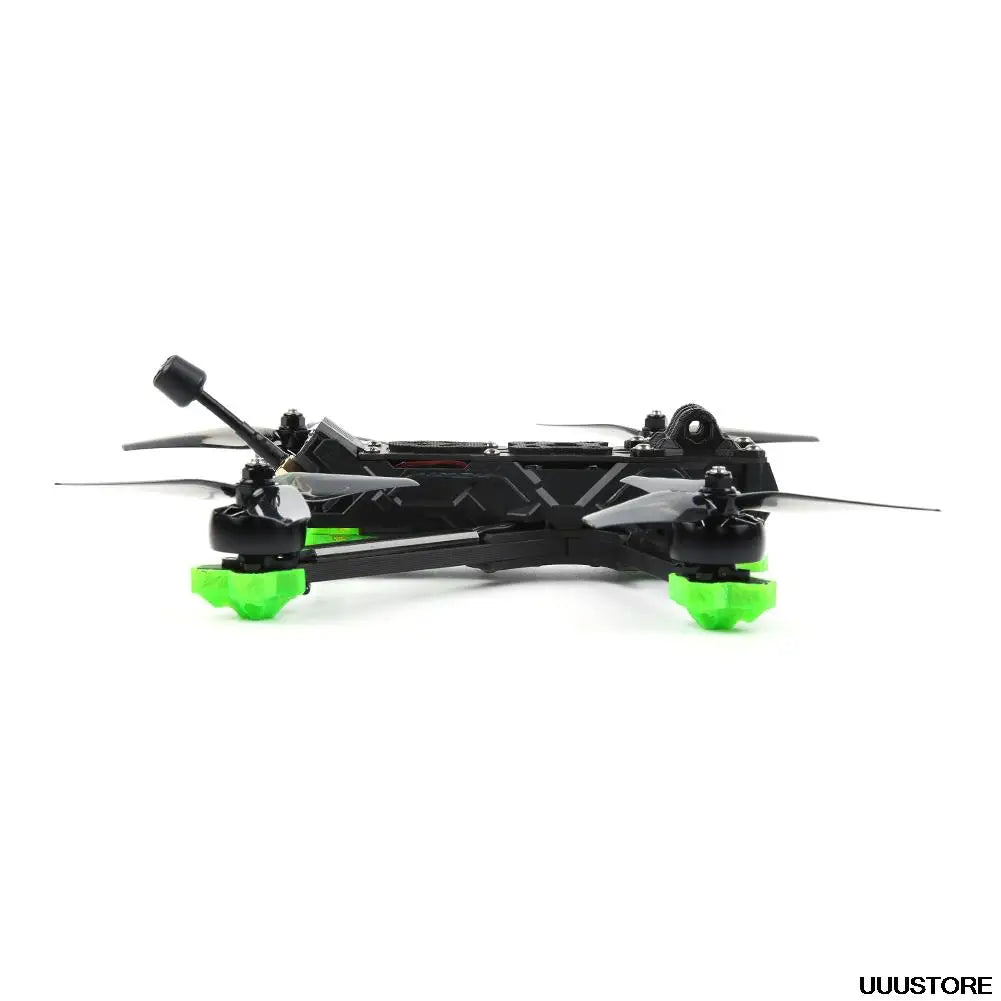

Geometry: Squashed-X or DC (DeadCat) frame available

Bottom to top distance: 28mm

Arm Thickness: 6mm

Bottom plate thickness: 3mm

Top plate thickness: 3mm

Upper(middle) plate thickness: 3mm

XING2 2207 motors (4S/6S)

Nazgul F5 propellers

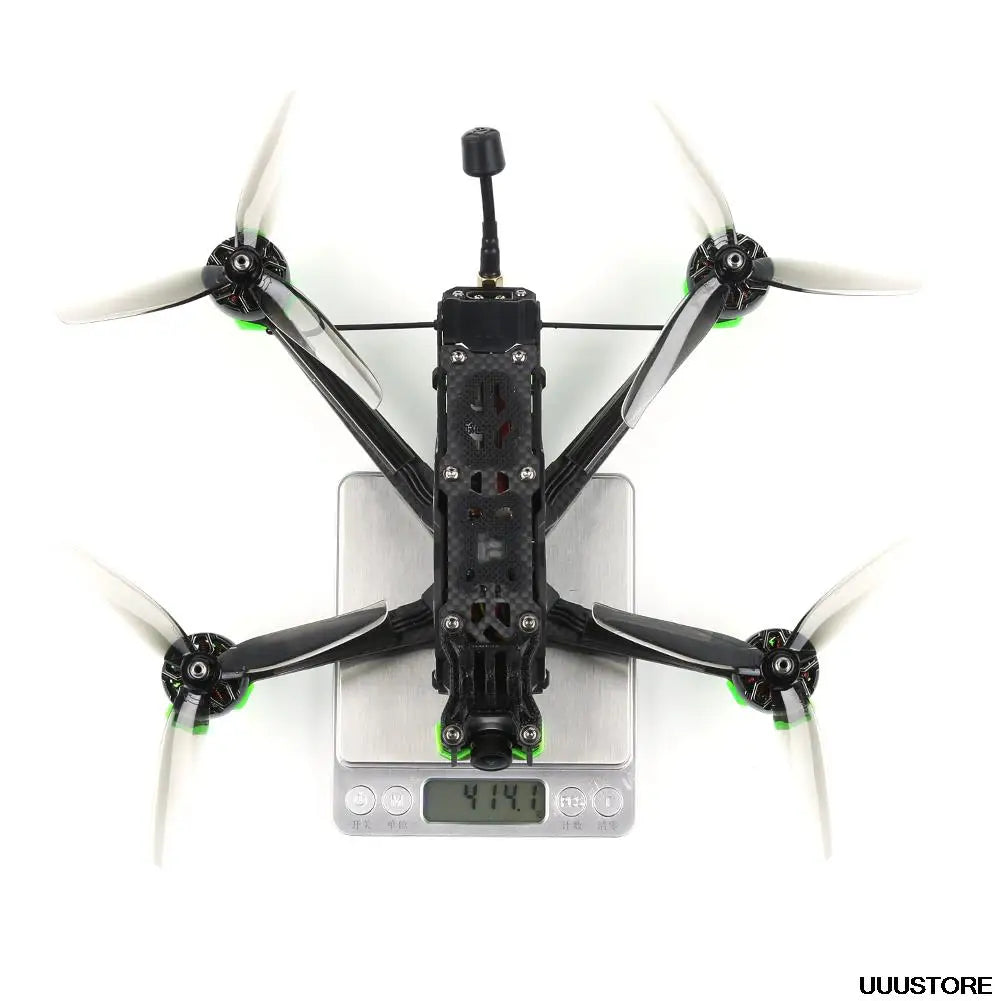

Weight: 412g (without battery and GoPro mount)

FC // BLITZ MINI F7 V1.1

Top Features:

BlackBox: 16MB

DJI Air Unit Plug-and-Play. No need to solder tiny wires.

BAT, +5V, 3.3, Start indicator

With LC filter.

Specs:

MCU：STM32 F722

Gyro：BMI270

Baro: DPS310

Betaflight OSD：IFLIGHT OSD （AT7456E)

Blackbox：16MB

5 X Uarts

UART1 for VTX HD/Analog

UART2 for  Receiver

UART3、UART4 for GPS or 0ther sensors that require a serial port

UART6 for ESC Telemetry

4×Dshot/PWMoutputs

1×I2C

1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）

1 xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)

1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2i/5V /G/R2/T2）

1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)

1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)

Smartaudio&IRCTramp  VTX protocol supported

WS2812ledStrip：Yes

Bepper：Yes

Firmware: IFRC-IFLIGHT_BLITZ_F722

Mounting：20*20mm/φ4

Dimensions：30.5*27mm

Weight：5.0g

ESC // BLITZ Mini 55A

Specification:

Dimension: 35*42mm

Mounting Holes: 20*20mm/Φ4mm

Weight: 11.3g

Supports 2-6S lipo input

MCU：G071

Constant: 55 Amps

Burst: 60 Amps

Current sensor: Yes

BEC: No

Current rate: 100

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Firmware: BLHeli 32

Target:   IFLIGHT_BLITZ_G1
